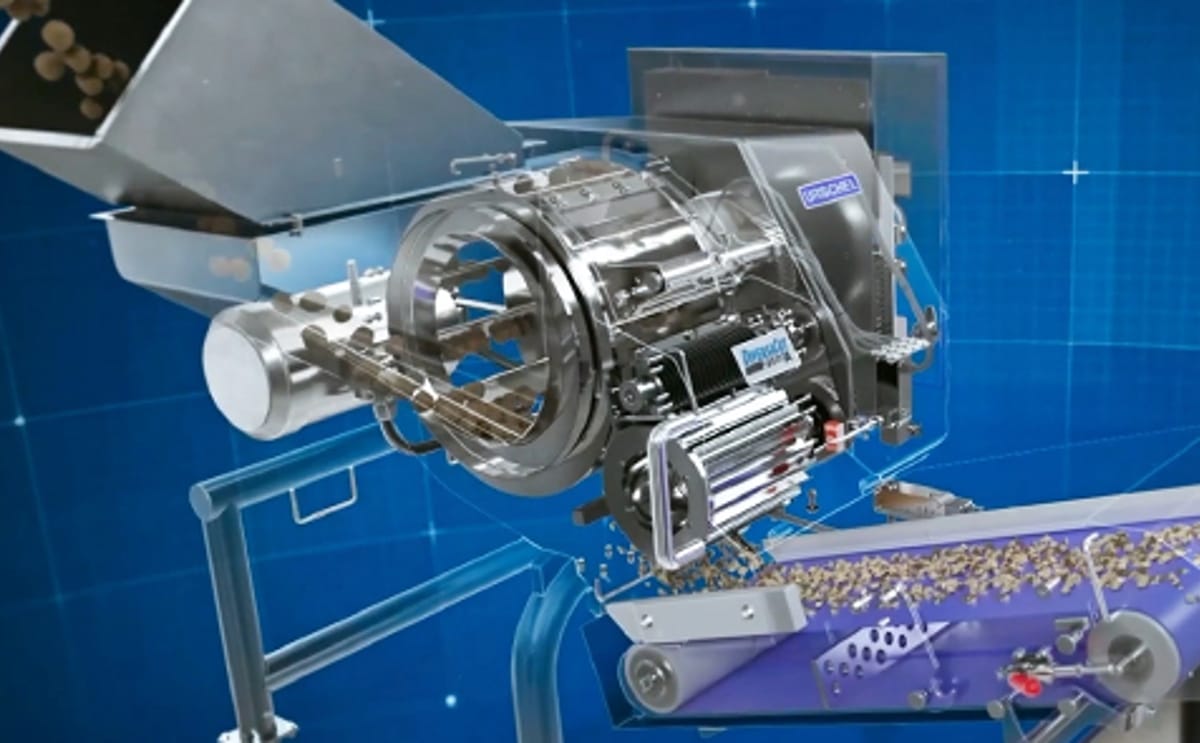

The DiversaCut Sprint® Dicer is a high performance dicer designed to uniformly dice, strip cut, and slice a wide variety of vegetables, fruits, and meats. Efficiency and flexibility are key traits of the Sprint®.

Shred for hashbrowns. 1/16 to 3/8" (1.6 to 9.5 mm) particles for potato pancakes or rösti from dicing and french fry screenings and rejects.

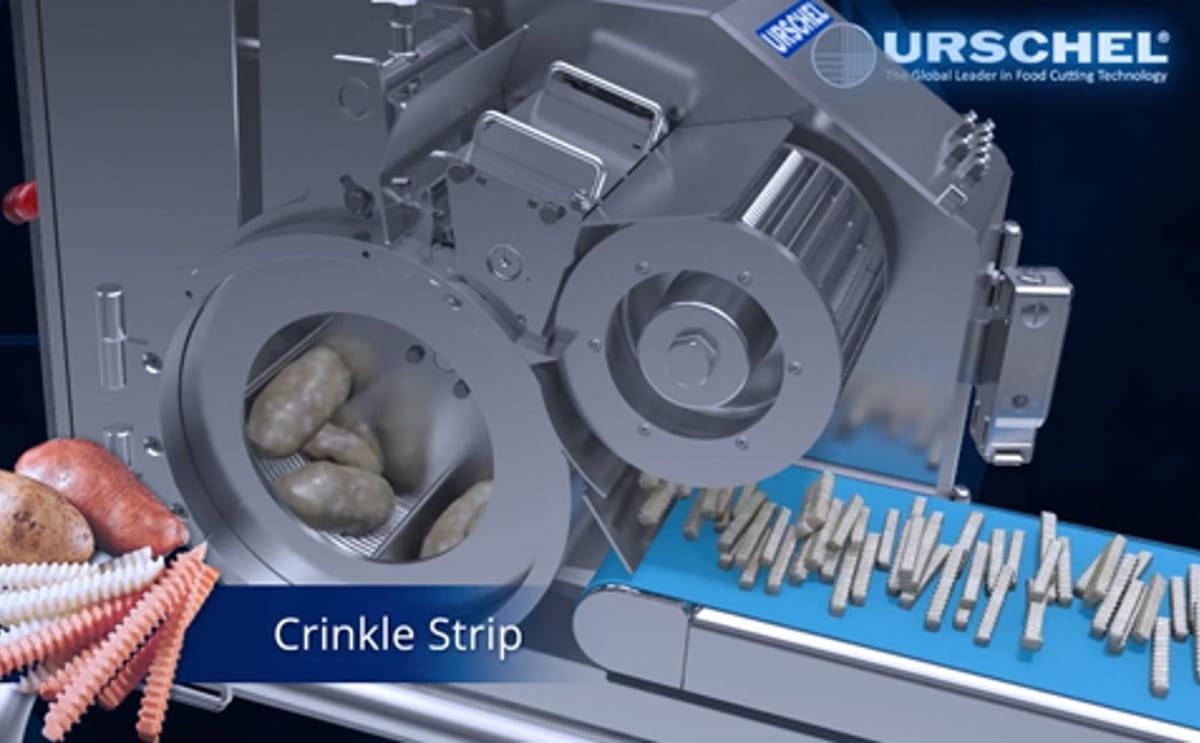

Sprint 2® Potato Dicer - 1/8 to 1" (1.6 to 25.4 mm) dices and pieces such as 1/8 x 1 x 1/8" (3.2 x 25.4 x 3.2 mm) from cooked product. Input product dimension should not exceed 6.5" (165.1 mm) in any dimension.

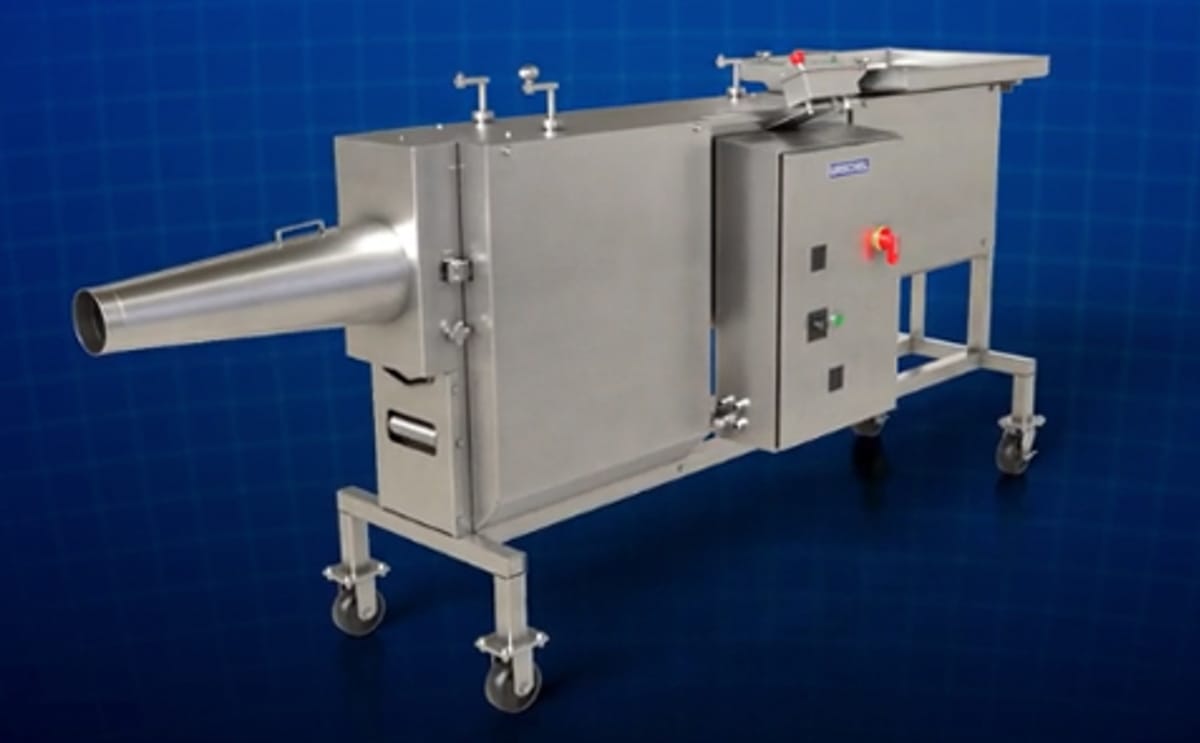

The Urschel Laboratories VSC Segment Cutter produces segments, slabs, and rectangular strips, offering a compact alternative to large waterjet systems. It is often used for R&D by potato processors to test new cuts before full-scale production.

This Model is used for shred for hashbrowns. 1/16 to 3/8" (1.6 to 9.5 mm) particles for potato pancakes or rösti from dicing and french fry screenings and rejects. Use cutting head with suitable particle opening size. Capacity is 4,000 - 5,000 lbs. (1,800 - 2,200 kg) hourly using 3,600 revolutions per minute impeller speed.

Tummers Cutting line Switcher is a stainless steel, industrial switcher for changing cutting blocks either automatically or manually, and without interrupting your production. They can be Operated with a front-mounted touch screen.

S-Blade is a high capacity automatic defect removal system developed by PIP Innovations for the french fry industry. Deep learning detects each defect, and S-Blade removes the defect and recovers the remaing ‘good’ fry.

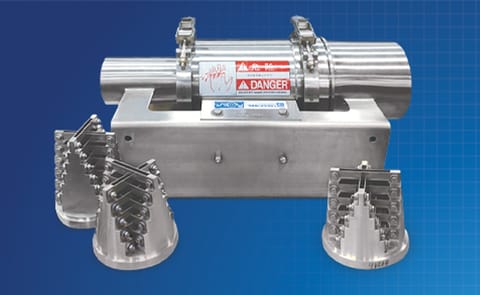

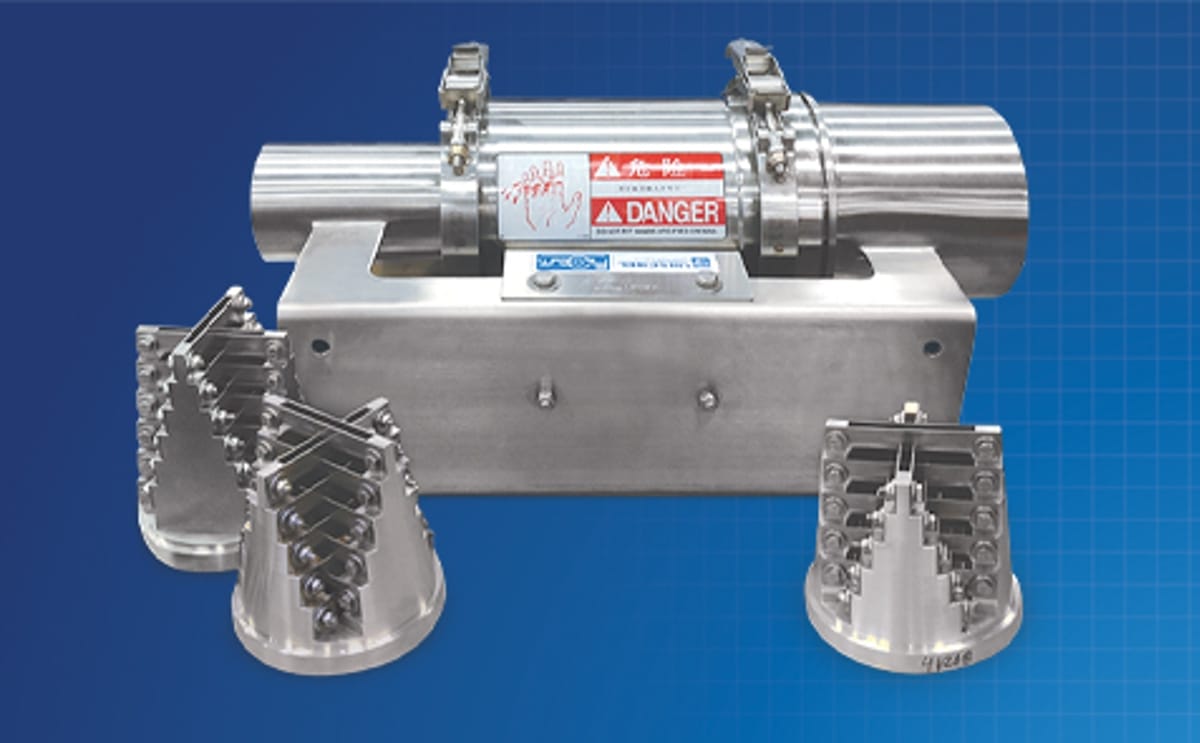

The Flo-Cut® Model 360 cutting head is designed for use in large volume watergun systems, or with the Urschel Model VSC Cutter. This unit can be integrated into watergun systems and offers fast, easy cutting head replacement for changing knives or sizes of cuts.

It is recommended for free-flowing dry and semi-dry applications. ​ For the size reduction of potato flakes a Model 1700 or 3600 can be used. Use cutting heads at 3,000 rpm or microcut heads with every other blade removed at 9,000 rpm or with VFD to make a particle size of 200 to 800 microns.

D-Blade is an intelligent robotic cutting system developed by PIP Innovations for cutting and portioning potatoes, vegetables and fruit. Delta robots with patented multipurpose blades position every cut exactly where it is needed, using vision technology to identify size and position. With up to 4 cuts per second per robot, D-Blade combines high capacity with precise, clean and straight cuts.

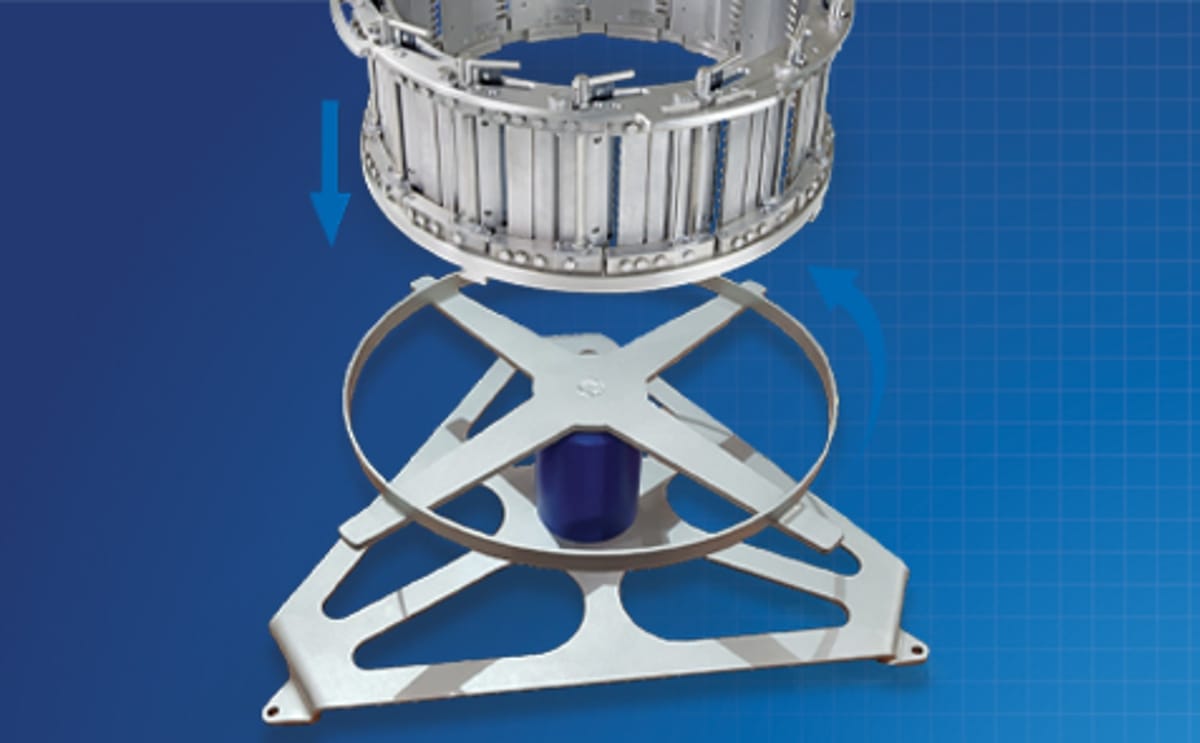

The Urschel Laboratories CC Turntable helps processors with cutting head maintenance and various service tasks, reducing downtime while saving production time and labor.

The Velocicut® Head may be used in conjunction with the Urschel Model VSC Cutter, or integrated into an existing watergun system. A variety of cuts may be produced including square, rectangular, slab, bi-slab, cross slab, and segment cuts.

The standard E TranSlicer Cutter (ETRS) accepts firm products up to 4" (101.6 mm) in diameter or leafy-type, compressible products up to 6" (152.4 mm). Interchangeable 20" (508 mm) diameter stainless steel cutting wheels reduce products with great precision and efficiency at high capacity.

The M VersaPro® (MVP) Dicer provides the best in sanitary design and the ultimate in versatile cutting of proteins. The MVP offers 33% increased feeding capacity versus the standard M6 due to wider belts, optimized cutting, and increased horsepower.

The FAM Centris is perfect for centrifugal slicing of potato and vegetable chips. Tested and in production since 2015, the line has an ever-expanding range of blades in all shapes and sizes.

Urschel Model CCLL is a high-capacity industrial lattice slicer designed for continuous production of waffle and lattice potato cuts. With five cutting stations, a 32-inch chamber, and 10 HP motor, it ensures uniform slices, gentle handling, higher yield, and efficient large-scale processing.

The Model CCL slicer produces lattice cuts of varying thickness. Both sides of the slice have crinkles, with the crinkles on each side of the slice running approximately 90° to each other. Uses involve lattice potato chips and thicker potato waffle fries.

The Comitrol® Processor Model 3640A High Speed (M3640A-HS) is ideal for processing tough or fibrous products in small volume to high capacity production environments.
