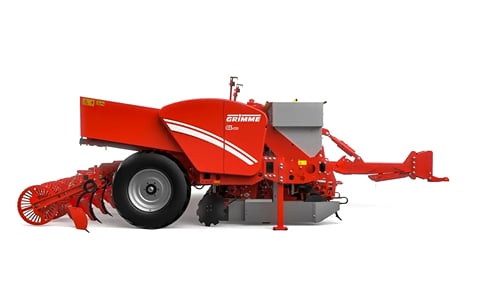

GRIMME GL 660 potato planter is a 6-row cup planter designed for large-scale farming, offering precise and even planting with high-speed performance. It can plant both traditionally and in separated beds, while large covering discs improve pulling, pre-shape ridges, and reduce soil compaction.
It supports combined operations like under-root fertilisation, ridge shaping, and application of liquid seed dressing and treatments, boosting efficiency. ISOBUS terminals such as CCI 60, 800, and 1200 provide advanced control and operator comfort.
Highlights
- Bed planters: For cultivation of potatoes in beds.
- Direct bunker filling from the trailer: With the deep hopper it is possible to fill the machine directly from the trailer.
- Well formed ridges: Shaping board for building ridges with specific characteristics from loose to firm soil with a smooth surface.
- Road transport: An end-tow kit is available for a safe transport on the road.
Standard equipment
- Potato planter with 6 planting elements
- Hydraulically operated lane marker, incl. sequence switch (hydraulic change-over valve)
- Mechanical shaker, infinitely adjustable
- Quick unlock to change planting belts
- Planting belt with cups of choice
- Fix stone furrow opener, spring loaded share via rubber buffers
- Spring loaded covering discs
- Row width 75 cm Lift up drawbar
- Long drawbar
- Chassis with pivot axle and 4 wheels
- Wheels 12.5/80 - 18 AS
- Tipping hopper flat capacity 6000 kg (at RW 75 cm, small hopper)
(Click to enlarge)

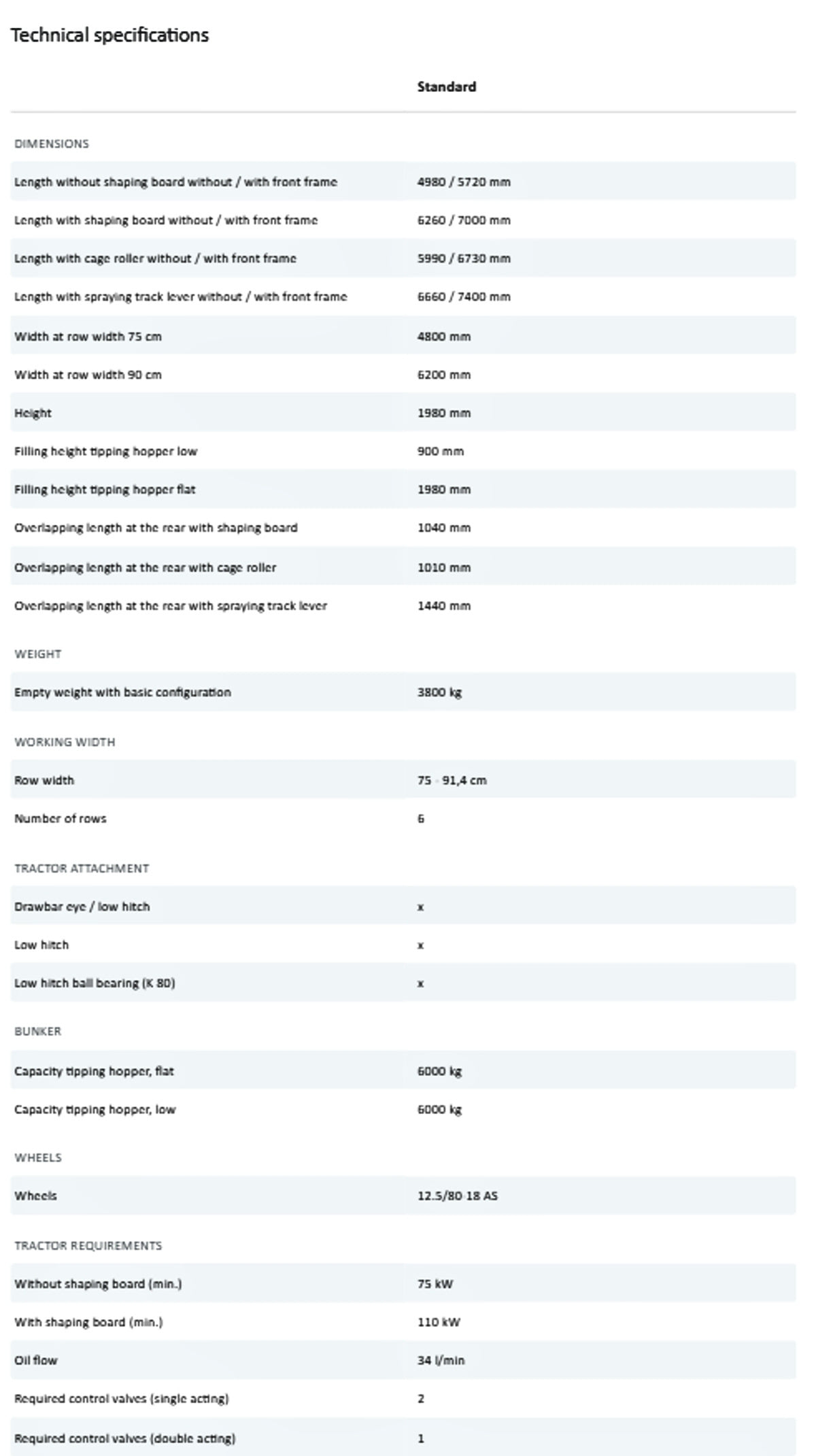

Grimme GL 660 Technical specifications
