The The new VARITRON 270 TERRA TRAC is a powerful two-row self-propelled potato harvester designed for maximum performance, comfort, and manoeuvrability under demanding harvesting conditions.
Equipped with a rubber track system and an extendable rear axle, the machine ensures excellent traction, reduced soil compaction, and outstanding stability. The right rear wheel can be extended by up to 550 mm, further improving safety and balance in the field.
The 7-tonne NonstopBunker, combined with a rotating bunker web, enables continuous harvesting with efficient filling and unloading. A wide range of separator options ensures effective separation of soil, stones, and haulm while maintaining gentle crop handling.
Advanced technologies such as ErgoDrive, Clean Control, and Visual Protect enhance operator comfort, machine control, and monitoring. With integrated telemetry via myGRIMME, the machine supports smart data management and seamless farm connectivity.
Product Specifications
Standard Equipment
- Offset-pulled intake section with 4 spring-loaded disc coulters
- Intake width: 540, 580, or 620 mm
- TerraControl system
- Row width: 75 cm
- 2- or 3-piece share blade
- Two diablo rollers (Ø 390 mm) with flat shoulders
- Two outer haulm feed-in rollers with centre retaining rubber
- Intake web pitch: 35, 40, 45, or 50 mm
- Pitch-dependent PU drive of intake web
- 1st main web: 28, 32, 35, 40, 45, or 50 mm pitch
- Pitch-independent friction drive of 1st main web
- Hydraulically driven rocker agitator with speed adjustment via terminal
- Hydraulically driven and reversible extracting unit after 1st main web
- 2nd main web: 28, 32, 35, 40, or 45 mm pitch
- Pitch-independent friction drive of 2nd main web
- Cart elevator transfer web with steel bars
- 900 mm wide ring elevator with canvas
- 1100 mm wide picking table
- One-sided platform (right side) for up to 2 persons
- 6 distributor rollers for even crop distribution
Bunker & Capacity
- NonstopBunker with 7000 kg capacity
- Rotating bunker web for efficient filling
- Reversing bunker floor
- Three-times lowerable unloading elevator
- Bunker chain greasing system
Engine & Mobility
- Engine: Mercedes-Benz (MTU) OM 936 LA
- Power: 260 kW / 354 HP (Stage V, SCR with AdBlue)
- Maximum speed: 20 or 25 km/h
- Offset turning table (front)
- Front tyres: 900/60 R32
- Rear right wheel: 800/65 R32 (extendable)
- Rear left: 800 mm wide rubber track
- Hydraulic levelling system
- Hydrostatic single-wheel drive with traction control (ASR)
Operator & Control Systems
- Driver cab with 6 LED working lights
- Heating and air-conditioning
- Electrically adjustable, heated, and foldable mirrors
- Compressor system
- ErgoDrive operating concept with multifunction lever
- CCI 1200 touchscreen terminal
- Clean Control for saving and reusing harvesting parameters
- Visual Protect (CAN-Bus monitoring system)
- GRIMME SmartConnect telemetry with connectivity to myGRIMME

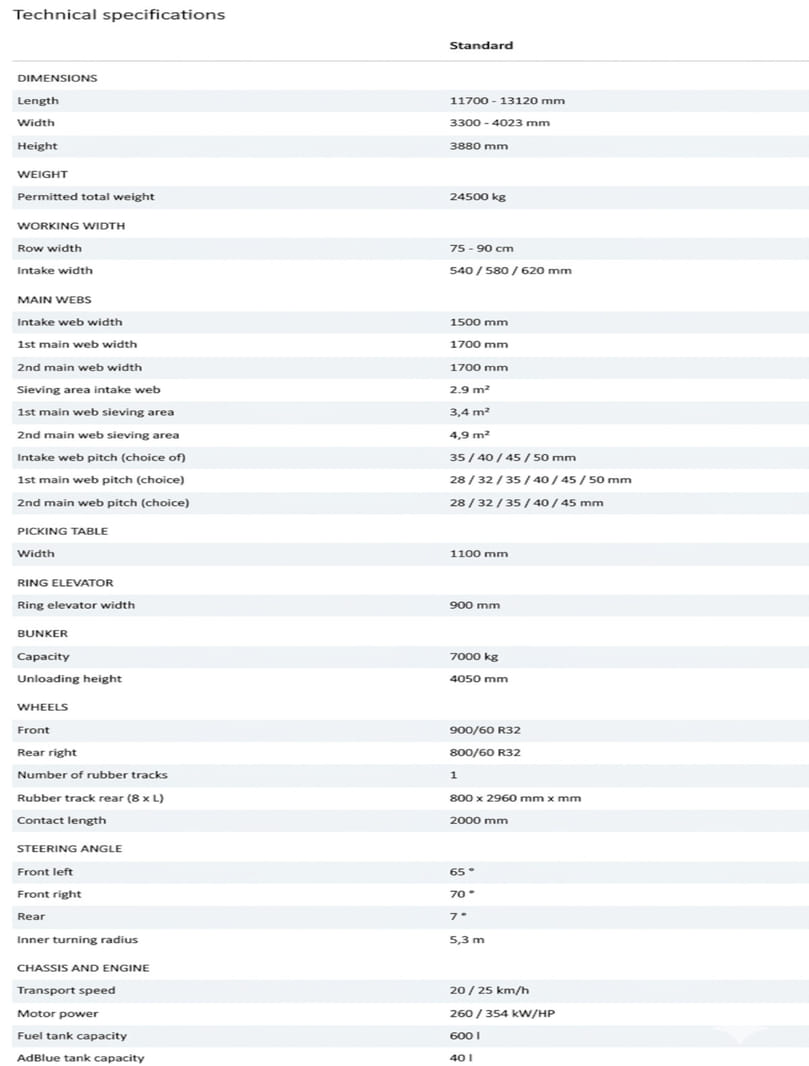

Technical Specification of Grimme The new VARITRON 270 TERRA TRAC
