The GRIMME VARITRON 470 is a high-performance 4-row self-propelled harvester designed for maximum productivity, comfort, and manoeuvrability. Its wheeled chassis with large-volume tyres ensures excellent soil protection and stability, even under demanding harvesting conditions.
Equipped with a powerful NonstopBunker XL, the machine offers a capacity of 13 m³ (approx. 9–11 tonnes), enabling continuous harvesting without interruption. The wide bunker unloading system and hydraulic hopper extensions improve logistics efficiency and ease of operation.
The VARITRON 470 features advanced separation technology with multiple separator configurations, including optional high-performance spiral rollers and adjustable MultiSep systems. This ensures excellent cleaning performance while maintaining gentle crop handling, even in heavy soil conditions.
Operator comfort is maximised with a premium cab option, offering enhanced insulation, ventilated and heated seats, and improved ergonomics. The SmartView system, with up to 13 cameras, provides complete visibility of all machine functions, allowing precise adjustments in real time.
Integrated digital solutions, including myGRIMME and SmartConnect telemetry, enable efficient data management, monitoring, and seamless farm integration.
Product Specifications
Standard Equipment
- Pulled diablo roller intake unit with TerraControl
- Row width: 75 cm
- GentleFlow crop flow system across full machine width
- Hydraulically driven intake web, 1st and 2nd main webs with independent speed control
- Reversible intake web, main webs, crop divider, haulm elevator, and ring elevator
- Hydraulically driven and adjustable rocker agitator (1st main web)
- Extracting roller after 1st main web
- 1200 mm wide ring elevator with canvas
- Speedtronic-Elevator (automatic speed control based on load)
- Bunker web with canvas
- Automatic bunker chain greasing system
Bunker & Capacity
- NonstopBunker XL capacity: 13 m³ (approx. 9–11 tonnes)
- 1.6 m wide bunker unloading web
- Hydraulic hopper extensions (foldable for transport)
- Continuous harvesting with full bunker refilling
Engine & Mobility
- Engine: Mercedes-Benz (MTU) OM 470 LA
- Power: 340 kW / 460 HP (Stage V, SCR with AdBlue)
- Hydrostatic single-wheel drive with traction control (ASR)
- Front wheels: 270/95 R54, steerable (±63°), hydraulic side shift ±100 mm
- Rear wheels: 900/60 R32 (LH) and 1050/50 R32 (RH), steerable (±20°)
- Excellent manoeuvrability and soil protection
Operator & Control Systems
- Driver cab with LED working lights and full-window wipers
- Premium comfort cab (optional): improved insulation, ventilated/heated seats, cooling compartment
- ErgoDrive operating system with multifunction lever
- CCI 1200 touchscreen terminal
- MemoryControl for saving and reusing harvest parameters
- SmartView BASIC camera system (8 cameras, expandable up to 13)
- Visual Protect Pro monitoring system
- GRIMME SmartConnect telemetry with connectivity to myGRIMME
- Compressor and Bluetooth-ready audio system

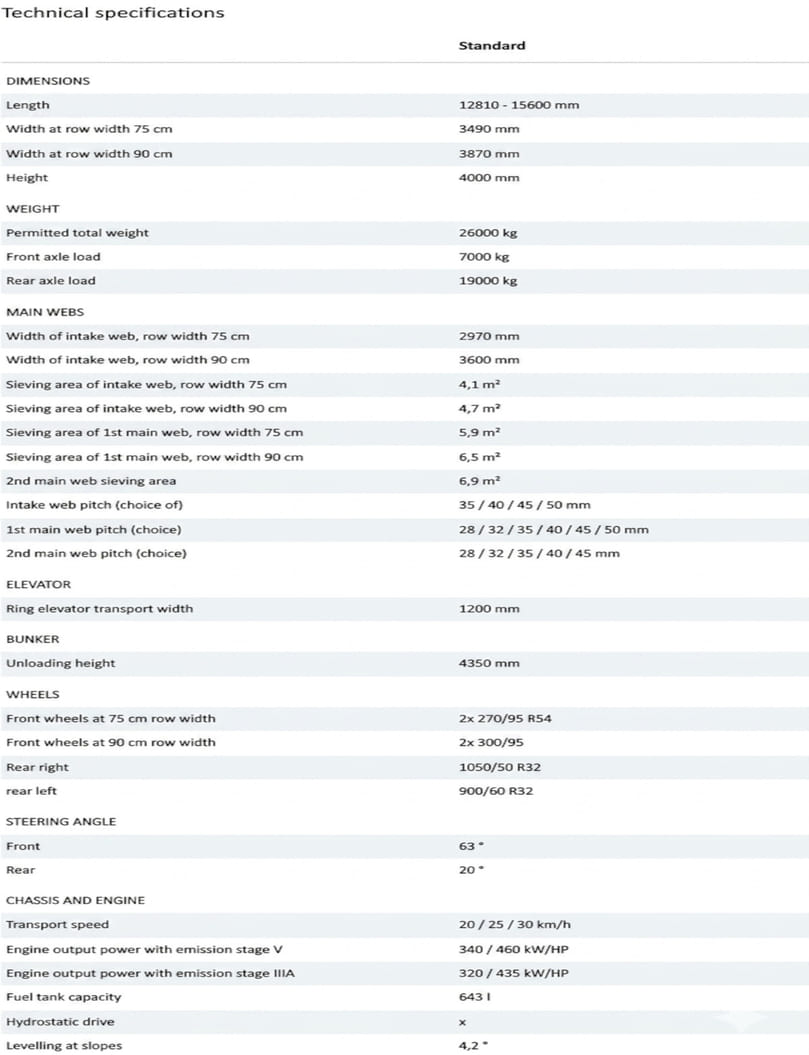

Technical Specification of Grimme The new VARITRON 470
