The GRIMME RH 24 PB is a high-capacity receiving hopper designed for medium to large farms and processing operations. Its straight hopper floor and integrated presentation belt (PB) ensure smooth crop flow and efficient handling of various vegetables.
The machine is engineered for maximum crop protection and high throughput. Features such as active pocket sealing and soft polyurethane (PU) spiral rollers minimise crop damage while delivering effective soil separation. The infinitely variable drive allows precise adjustment to different operating conditions.
Advanced cleaning performance is achieved through the VarioClean system, which enables flexible adjustment of the roller units for intensive soil removal, especially in heavy or sticky soils.
Operation is intuitive via the IBX 300 ISOBUS control unit, with optional integration of the CCI terminal for enhanced automation. Systems such as RemainControl and Capacity Control optimise crop flow, reduce drop heights, and improve overall storage efficiency.
Product Specifications
Standard Equipment
- Straight hopper floor with horizontal head section
- Receiving width: 3.1 m
- Side panel cushioning in receiving section
- Deep and soft receiving pockets
- Active pocket sealing system
- Heavy-duty hopper floor chains with external bearings
- Infinitely adjustable hopper floor speed
- Transfer web (presentation belt): PB 240 × 80 cm
- Soil cleaning unit with 8 PU spiral rollers
- Hydraulically adjustable cleaning unit (distance and levelling)
- Infinitely variable speed control of PU cleaning rollers
- Differential speed adjustment for spiral rollers
- Soil cross conveyor
- Crop cross conveyor
- ISOBUS operator unit IBX 300

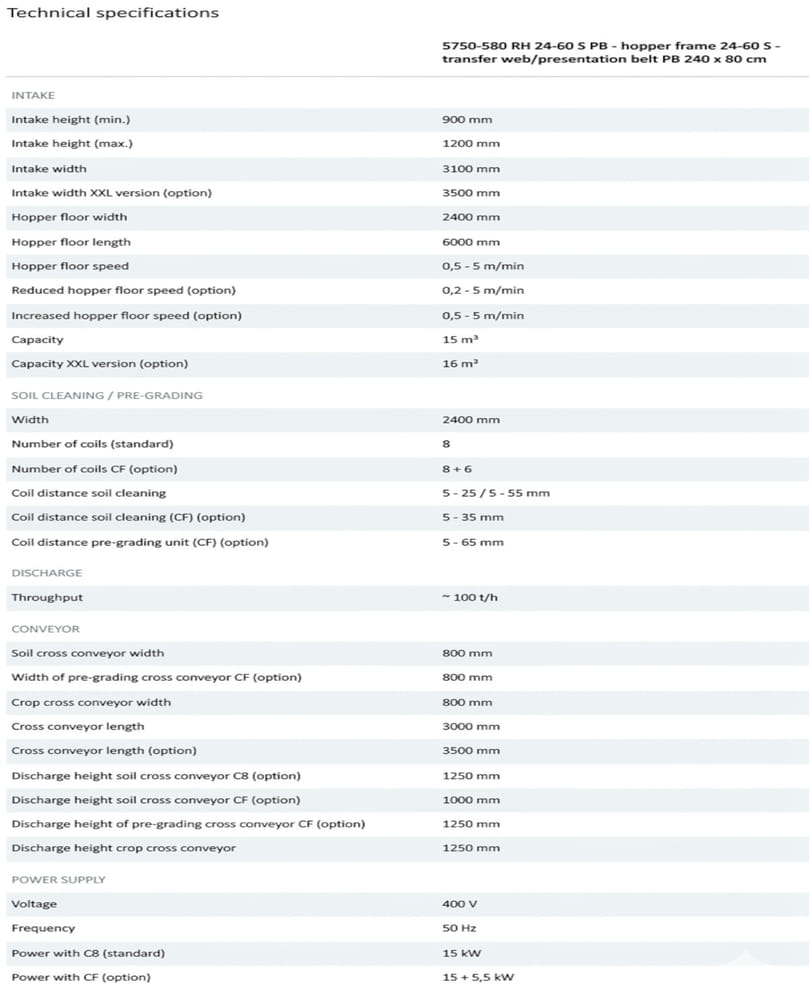

Technical Specification of Grimme RH 24 PB
