The GRIMME SELECT 200 is a two-row elevator harvester designed for highly efficient harvesting with continuous overloading. It combines high performance with maximum crop protection, making it ideal for large-scale operations.
The machine features a straight crop flow with minimal drop heights, ensuring gentle handling and reduced crop damage. A wide range of separator options allows adaptation to various soil and harvesting conditions. Its open main frame design provides excellent visibility across the entire machine, improving operational control.
With the patented MultiSep and optional double MultiSep systems, the SELECT 200 delivers outstanding separation performance, even under challenging conditions. For enhanced haulm separation, the machine can be equipped with a fine haulm elevator or a blower.
The long and flexible cart elevator ensures smooth and gentle transfer of the crop into trailers, including deep transport vehicles. Optional OptiBag conveying pockets provide additional cleaning by sieving heavy soil during the overloading process.
The ActiveSteering system, an electronically controlled hydraulic steering solution, improves manoeuvrability, reduces turning radius, and enhances operator comfort, especially on headlands and during transport.
Product Specifications
Standard Equipment:
- Tractor attachment for drawbar eye (40 or 50 mm diameter)
- Drive shaft (540 rpm) with overrunning clutch
- Hydraulic levelling system
- Hydraulic axle steering
- Wheels: 600/50 R22.5
- Ridge intake with pulled intake unit and four spring-loaded disc coulters
- Disc coulter spacing: 540, 580, or 620 mm
- 2- or 3-piece share blade
- Two diablo rollers with flat shoulders
- Two outer haulm feed-in rollers with centre retaining rubber
- Speed-adjustable rocker agitator in the 1st main web via operator terminal
- Extracting roller against the 1st main web
- 1st main web: 28, 32, 35, 40, 45, or 50 mm pitch
- 2nd main web: 32, 35, 40, or 45 mm pitch
- Powerful hydraulically driven cart elevator
- Brake system and lighting system

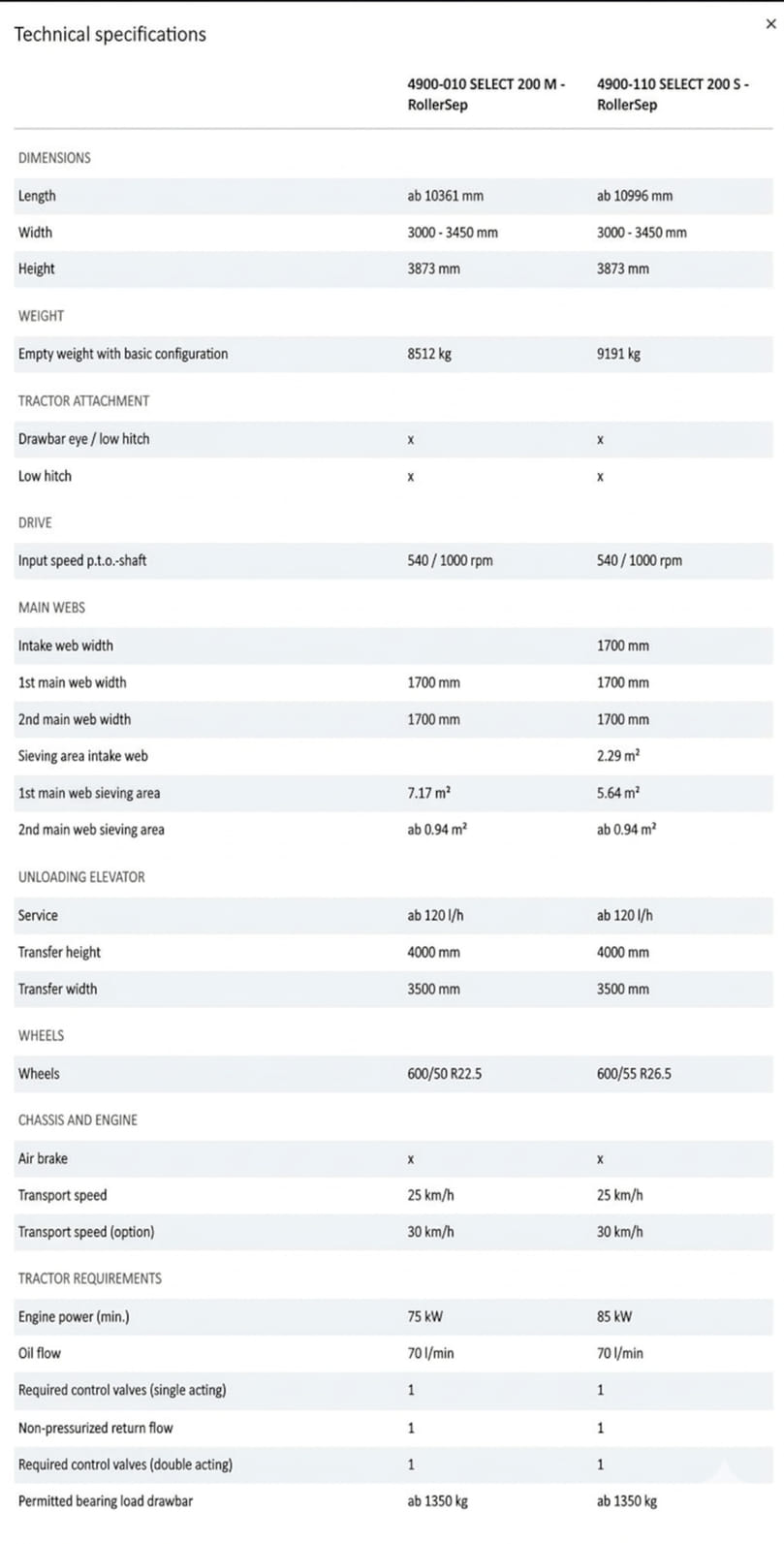

1200 X 2363 Technical specification Grimme SELECT 200
