Newtec Weighing Machine 4010W1

Beschrijving

The Newtec Weighing Machine 4010W1 is designed for accurate, high-speed weighing of extremely large products such as Potatoes including sweet potatoes, onions, beetroots, citrus and portions.

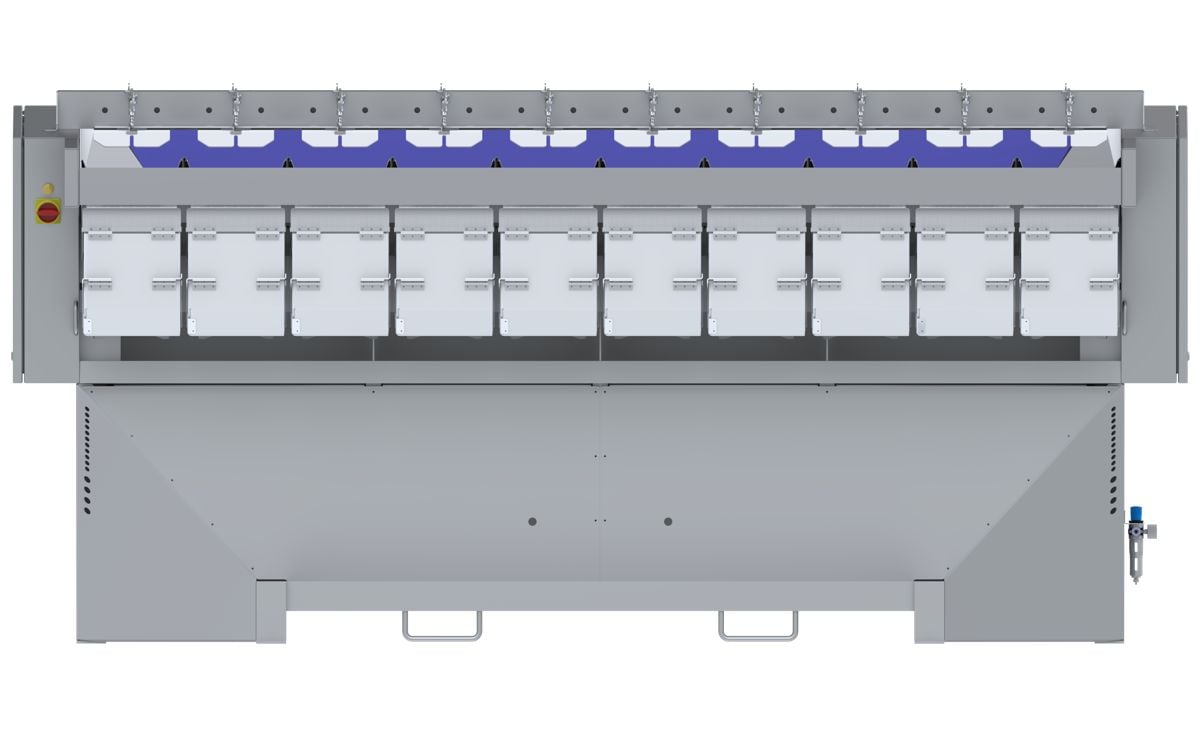

Newtec 4010W1 Front View

Advantages

High weighing accuracy: Typical giveaway: less than 0.2%
High speed – up to 20 portions/min. at 25 kg
Extra large weigh heads for extremely large products and portions
Web Services enabled for remote servicing and for capturing production data
MachineLink enabled - from only one touchscreen, either on our Weighing Machine or Check Point, recipe change and start/stop for both machines is possible

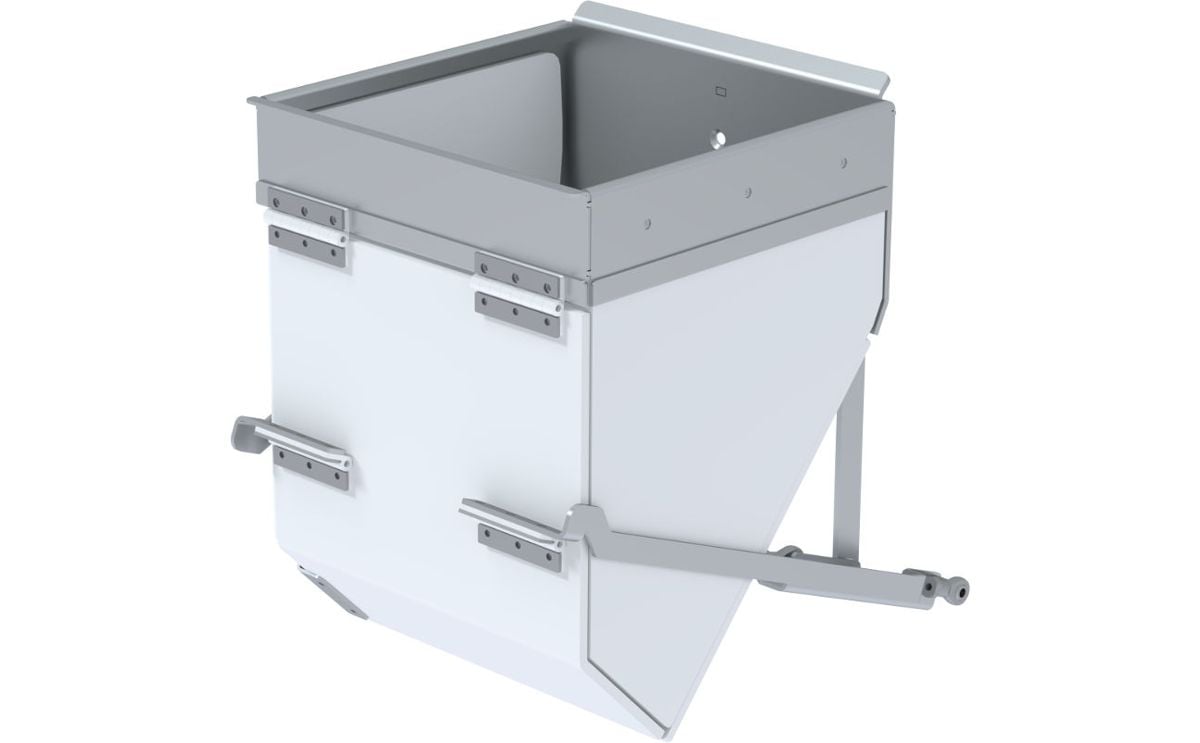

Extra large weigh heads to prevent bridging of products

Applications	Potatoes (incl. sweet potatoes), onions, beetroots and citrus
No. of weigh heads	10
Width of weigh heads	245 mm
Portion sizes	1.00 - 25.00 kg
Speed	Up to 35 portions/min.
Product size	Ø: 20 - 200 mm, L: 20 - 230 mm
Dimensions without Portion Collection System	W: 3160 mm, H: 1473 mm, D: 1627 mm
Air consumption and pressure	200 NL/min., 6 bar (0.6Mpa)
Electricity consumption	3x230 VAC or 3x400 VAC (N) PE 50/60 Hz 3-6 kW

Select belt/outlet option

L+R

L+R - Speed (up to) 17 portions/min. per outlet
R - Speed (up to) 25 portions/min.

(Click picture to watch video)

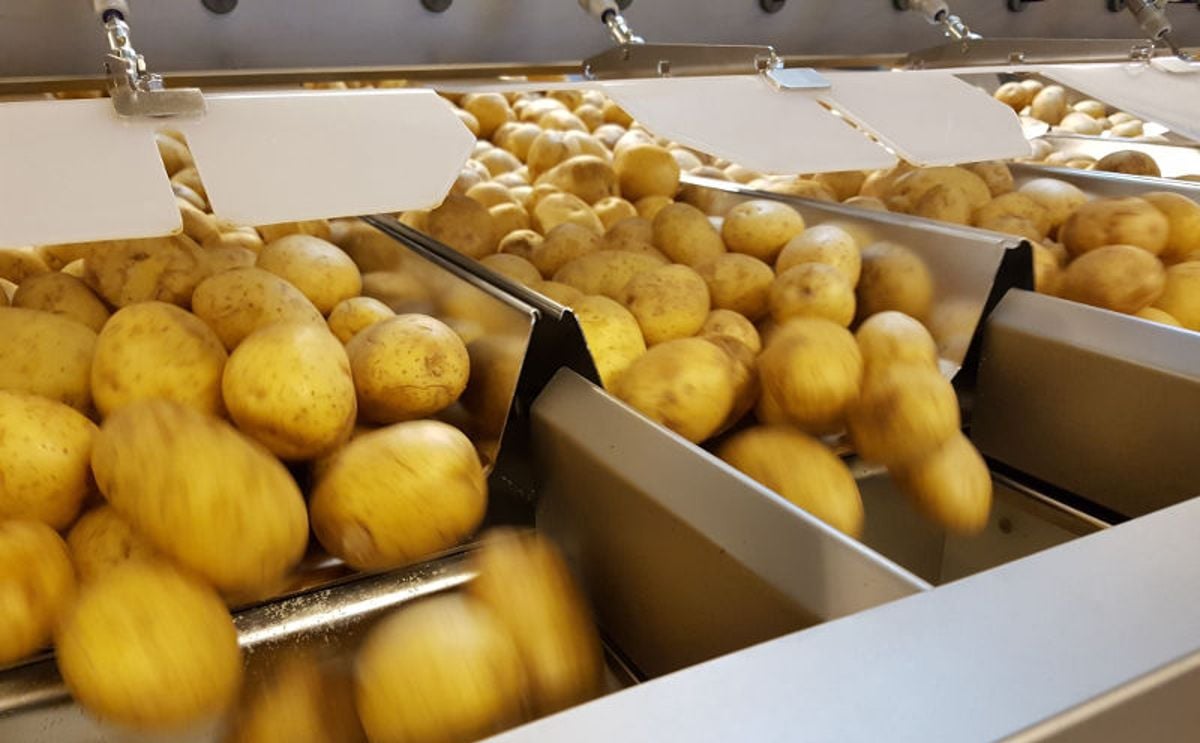

Newtec Weighing Machine, Model 4010W1, 25kg

Newtec Weighing Machine 4010W1 Brochure

(Click to download the brochure | PDF)

Newtec Weighing Machine 4010W1
