The GRIMME CS 150 is a high-performance destoner designed to ensure effective soil separation in stony and cloddy fields, which is essential for producing high-quality crops such as potatoes, carrots, and onions. It uses advanced combinations of star rollers and main webs to suit different soil conditions and grower needs.
A key feature is the patented RotaPower shaft, which increases sieving output by about 25% compared to conventional systems. It breaks down compacted soil and improves soil flow, while also reducing wear on downstream components. The machine is built for efficiency, durability, and high economic performance in demanding field conditions.
Highlights
- RotaPower Technology: Enhances soil crushing and acceleration, improving overall sieving capacity.
- Easy Adjustment: Parallel star adjustment allows quick and simple machine setup.
- Improved Sieving Performance: Up to 15% higher efficiency with the Combi-Star XL extended main web.
- Stone Collection System: Large stones are transported into a bunker for easy removal at the field edge.
Standard equipment
- Attachment in the lower guide (Cat. 3)
- Jack stand manual adjustable
- Track width at 1500 mm wide main web channel: 1.65 m (1.50 m / 1.70 m / 1.80 m)
- Track width at 1700 mm wide main web channel: 1.80 m (1.85 m / 1.93 m / 2.00 m)
- Intake width at 1500 mm wide main web channel: 1.45 m (1.35 m)
- Intake width at 1700 mm wide main web channel: 1.45 m (1.60 m)
- Automatic depth control via diablo roller
- Two large, toothed disc coulters
- Light clod mat with hydraulic lifting
- Hydraulic side adjustment of the discharge conveyor
- Hydraulically driven discharge conveyor
- Hydraulic axle steering
- Hydraulic height adjustment of the chassis
- Brake system Wheels 360/85-20
- Lighting system Load-sensing
(Click to enlarge)

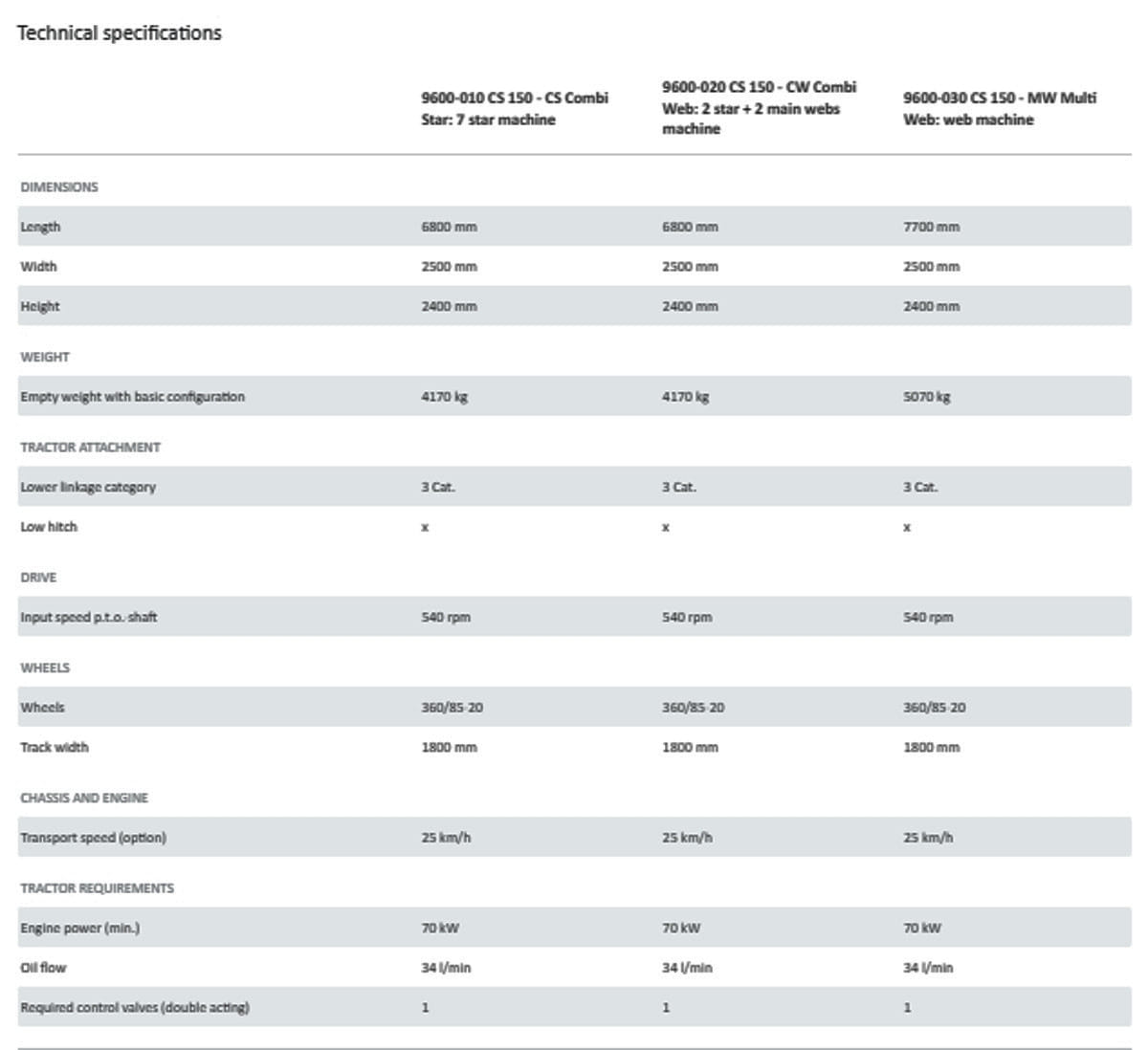

GRIMME CS 150 Technical specifications
