The HT 210 is a high-performance 2-row haulm topper designed to work efficiently with self-propelled potato harvesters. It is suitable for both 90 cm row spacing and 1.80 m bed systems, offering flexibility across different cultivation methods.
The machine mechanically crushes potato haulm and discharges it laterally via a cross conveyor. This significantly reduces the risk of blockages at the harvester intake and improves overall harvesting capacity. It is especially effective in modern potato varieties with dense and vigorous haulm growth.
By reducing the load on separation systems, the HT 210 enhances crop flow, improves separation quality, and minimizes harvest losses. The working depth can be easily adjusted via the operator terminal, with optional automatic depth control via skids for greater precision.
Highlights:
- Mechanical haulm crushing with lateral discharge
- Reduced risk of intake blockages
- Improved separation efficiency and crop flow
- Suitable for dense and high haulm crops
- Compatible with row and bed cultivation systems
- Working depth adjustment via operator terminal
- Optional automatic depth control via skids
- Infinitely variable flail shaft speed adjustment from the driver’s seat
Product Specifications
Standard Equipment:
- Flail shaft width: 2.10 m
- Row width: 90 cm
- Bed width: 1.80 m
- Adjustable flail setting for ridge or bed cultivation
- Number of flails: 54
- Hydraulically driven flail shaft
- Lateral haulm discharge via cross conveyor
- Hydraulically driven cross conveyor
- Contour hood for precise haulm guidance
- Shear plate
- 2 pendular support wheels with infinite manual height adjustment
- Lighting system

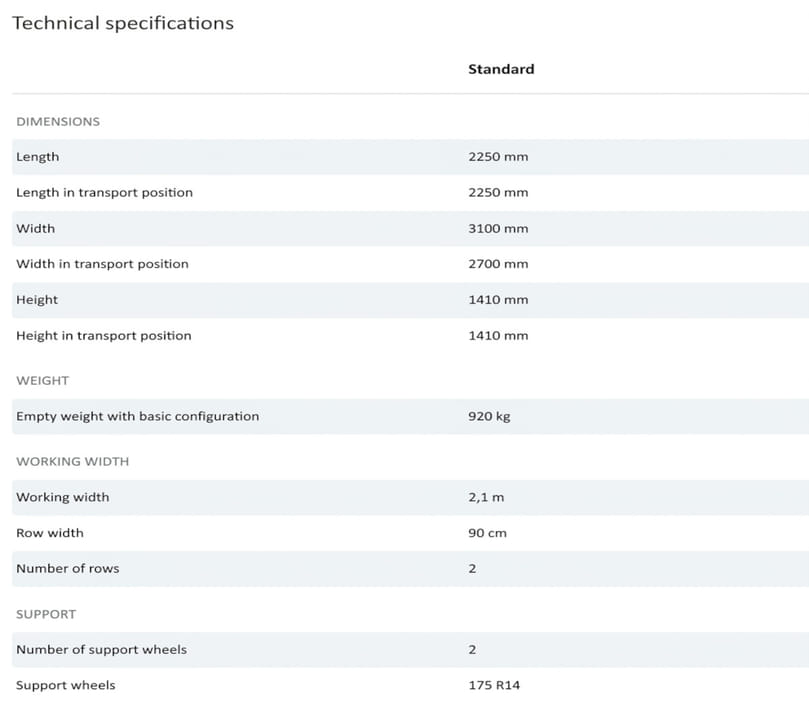

Technical Specification of Grimme HT 210
