The GRIMME SE 150-60 is a high-performance bunker harvester designed to deliver high output while ensuring gentle crop handling. It is available in four variants, differing in separator types, allowing the machine to be tailored to varying soil and harvesting conditions.
The harvester offers three bunker configurations: a 6-tonne standard bunker, a 7.5-tonne large bunker, and a 5.8-tonne overloading bunker for direct transfer into trailers during harvesting. Its design ensures excellent visibility of the digging unit, easy handling, and simplified maintenance. Optional features such as a video system further enhance operator convenience.
Different separator options provide flexibility:
- The UB separator (four-row finger scraper web) is ideal for clod-rich soils with low stone content.
- The SB separator (six-row brush web) performs best in stony conditions.
The machine can also be equipped with a windrow intake for two-phase harvesting. Hydraulic depth control and variable brush speed minimise soil intake and improve efficiency.
Additionally, the SE 150-60 supports versatile use, allowing harvesting of crops such as carrots, celery, and red beet alongside potatoes, depending on cultivation methods.
Product Specifications
Standard Equipment
- Offset-pulled intake section with spring-loaded disc coulters
- Drawbar hitch under the PTO shaft
- Hydraulic drawbar steering
- Hydraulic jack stand
- Hydraulic axle steering
- Wheels: 600/55-26.5
- Automatic axle self-centre steering and automatic levelling
- Automatic ridge self-centre steering
- Automatic ridge relief / ridge pressure regulation
- Stainless steel in swing frame
- Rocker agitator in the first main web
- Slip control for the first separator and second main web
- 1st main web: 28, 32, 35, 40, 45, or 50 mm pitch (lock connection)
- 2nd main web: 28, 32, 35, 40, or 45 mm pitch (overlapping connection)
- Six manually adjustable triangular rollers below the first main web
- Deviner web with scraper (200 or 280 mm pitch)
- Self-contained hydraulic system for separator drive
- First separator: Hedgehog web with triple scraper roller
- Second separator: Hedgehog web with double scraper roller
- Third separator (optional):
- UB (finger web)
- NB (double scraper roller)
- SB (brush web)
- Picking table platforms on both sides (not available with NB separator)
- Hydraulically lowering final conveyor
- Bunker unloading height: 4200 mm
- Hopper capacity: 6000 kg
- Two-step motor for bunker emptying
- Warning system for tractor driver
- Brake system and lighting system

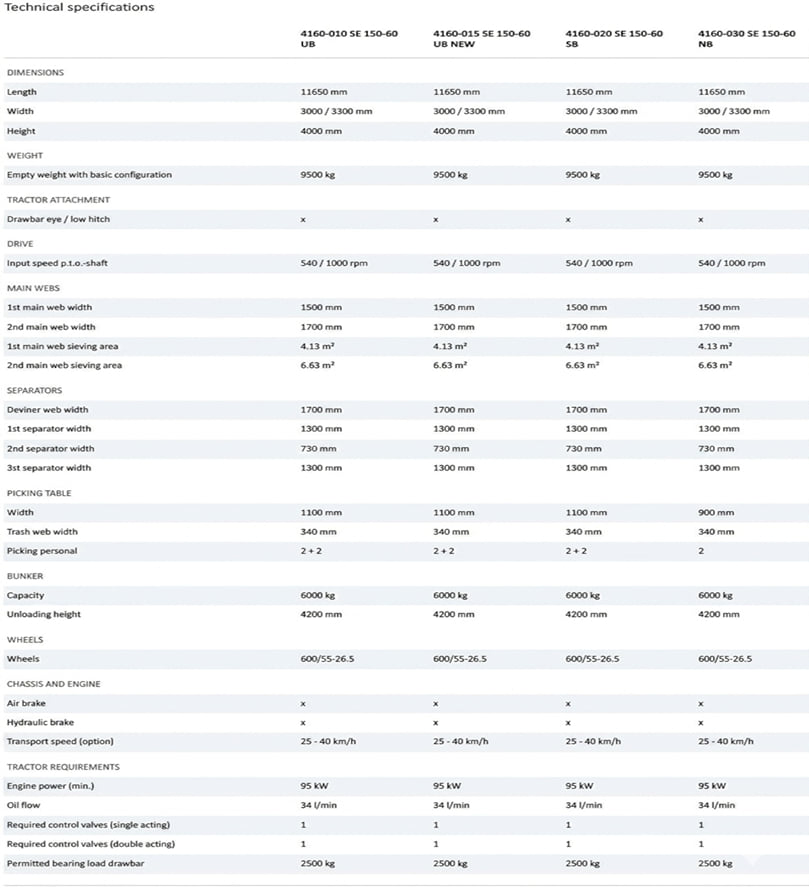

Grimme SE 150-60 Technicial Specification
