The GRIMME RH 20 Combi / RH 24 Combi receiving hoppers are designed to combine multiple handling steps in storage and processing into a single, efficient system. Their modular design allows flexible configuration to meet specific customer requirements.
These machines can be equipped with pre-grading units, stone and clod separation systems, and picking tables with sorting platforms on both sides, accommodating up to eight operators. Additional pre-grading after the picking table is possible using either a web grader or one- or two-stage PU spiral roller units, depending on the required grading precision and crop protection level.
The infinitely variable drive system enables precise adjustment to different crop conditions and throughput requirements. With optimised crop flow and gentle handling throughout all stages, the RH Combi series ensures high throughput while maintaining excellent crop quality.
Special features such as PU spiral rollers provide effective separation with minimal crop damage, while preventing blockages caused by stones or haulm. The direct coupling between machine units ensures smooth and gentle crop transfer across the entire system.
Product Specifications
Standard Equipment
- Receiving section width: 3.1 m
- Side panel stuffing in receiving section
- Hopper floor with horizontal head end
- Deep, soft receiving pockets (bags)
- Active pocket sealing system
- Robust hopper floor chains with external bearings
- Infinitely adjustable hopper floor speed
- Hydraulic distance and levelling adjustment of PU spiral rollers
- Infinitely variable speed adjustment of PU cleaning rollers
- Differential speed adjustment of PU spiral coils
- Soil and crop cross conveyor
- Operator terminal: GBT 831 / GBT 818 or VC 50 (depending on configuration)
Optional Equipment
- CLS system for clod and stone separation
- Picking table PT 30 / PT 40 (capacity for 6–8 persons)

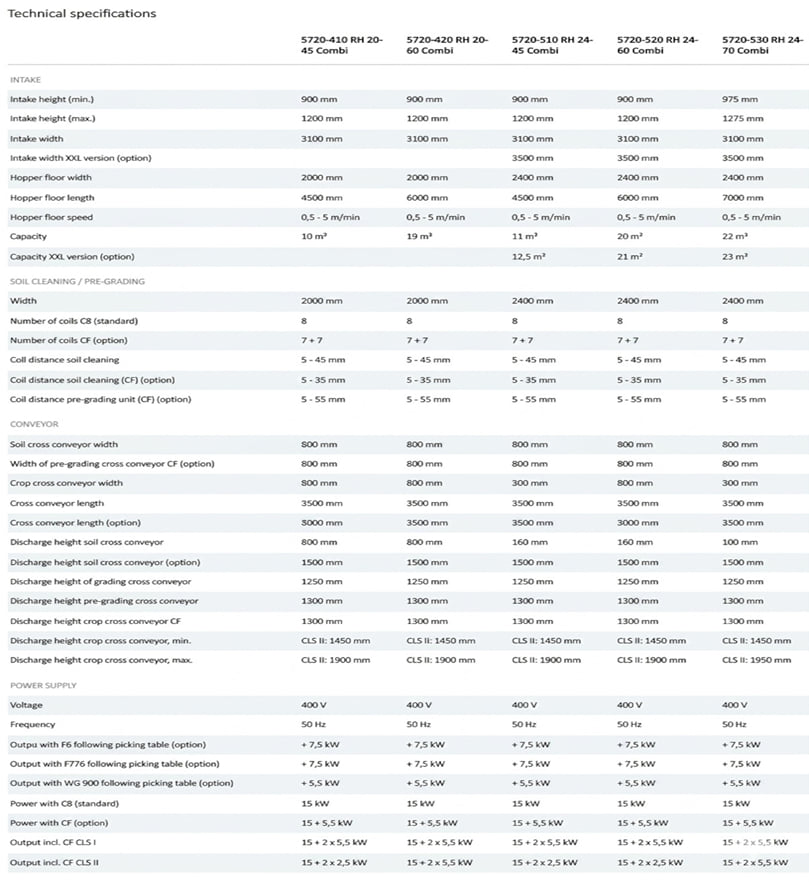

Technical Specification of Grimme RH 20 Combi/ RH 24 Combi
