The TC 813 / TC 816 twin conveyors offer high conveying capacity with gentle crop handling, making them ideal for efficient transport into storage. With two 80 cm wide belts, they provide flexible transport lengths of 8–13 m and 10–16 m. The innovative “Airbag” lifting mechanism raises the belt during transfer, preventing damage from carriage rollers and ensuring smooth crop flow.
For enhanced protection, the optional SoftFlow system with soft rubber fingers reduces crop strain by up to 30%, ensuring gentle transfer to downstream equipment. The electro-hydraulic drive allows infinitely variable speed adjustment for optimal performance, while the adjustable range enables repositioning of the store loader without moving the entire storage line.
Highlights
The TC 813 / TC 816 twin conveyors are built for durability, featuring a strong, closed frame construction that ensures a long service life. The award-winning “Airbag” belt lifting mechanism enables an extremely gentle transfer of the crop from the first to the second conveyor, minimizing damage and preserving crop quality.
They deliver high conveying capacity with excellent crop protection thanks to trough-shaped belts with actively conveying side walls that reduce friction. The machine is also easy to move with its offset tandem wheel chassis, while the optional SoftFlow system ensures smooth, crop-friendly transfer using soft, self-cleaning PU fingers.
Standard equipment
- Unique belt lifting system ("airbag") for a gentle crop transfer from the first to the second conveyor
- Trough-shaped conveyor belt with actively running side panels
- Ball-bearing steel support rollers, lifetime-lubricated and maintenance-free
- Pulled belt drive Infinitely adjustable belt speed from 20 to 65 m/min
- Infinitely length adjustment via hand lever
- Infinitely height adjustable chassis at the intake side
- Robust chassis with moveable main wheels
- Turnable steering rollers with locking function
- Hydraulic height adjustment at the discharge side
(Click to enlarge)

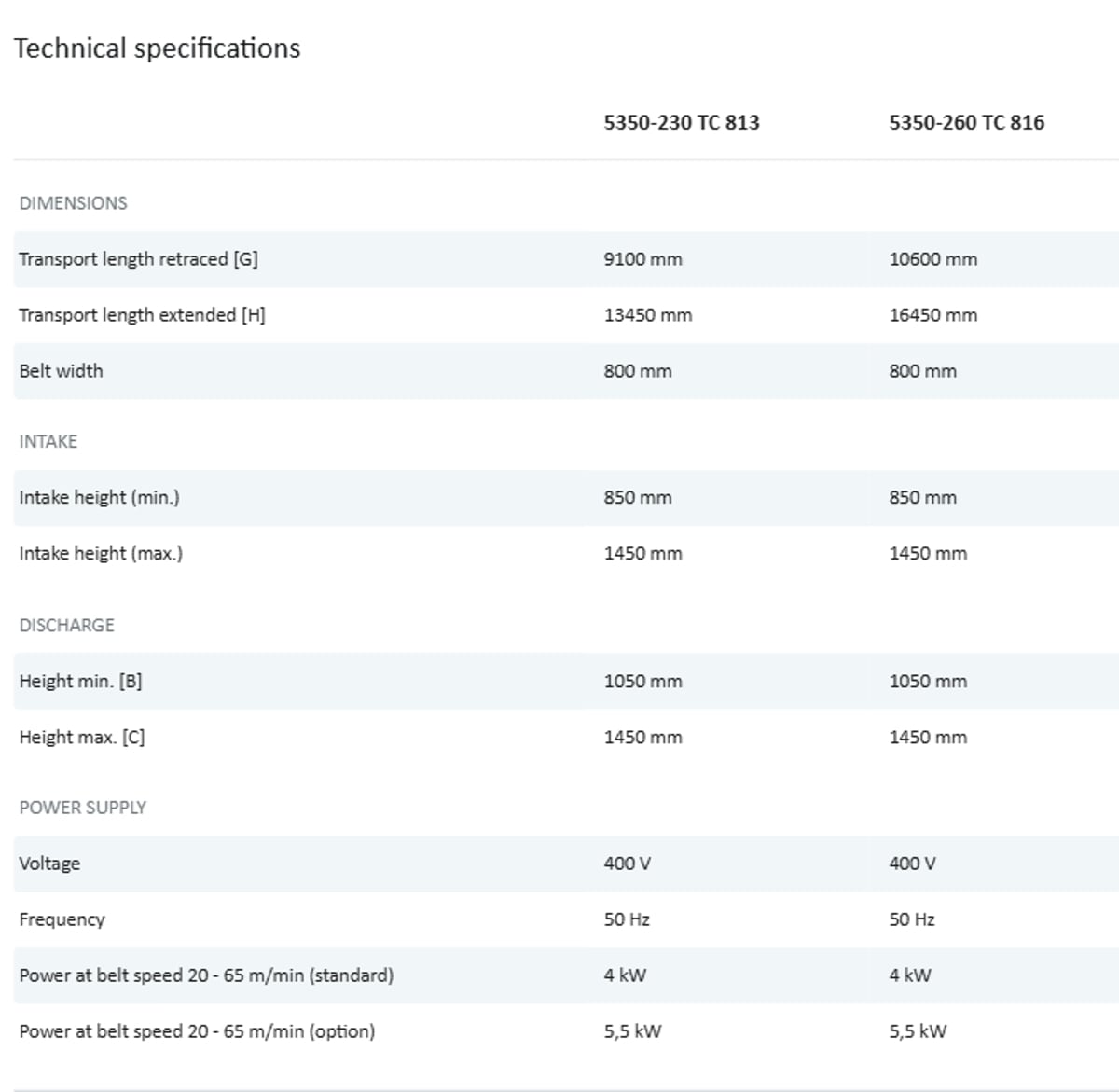

Grimme TC series conveyors Technical specifications
