Allround Receiving Hopper

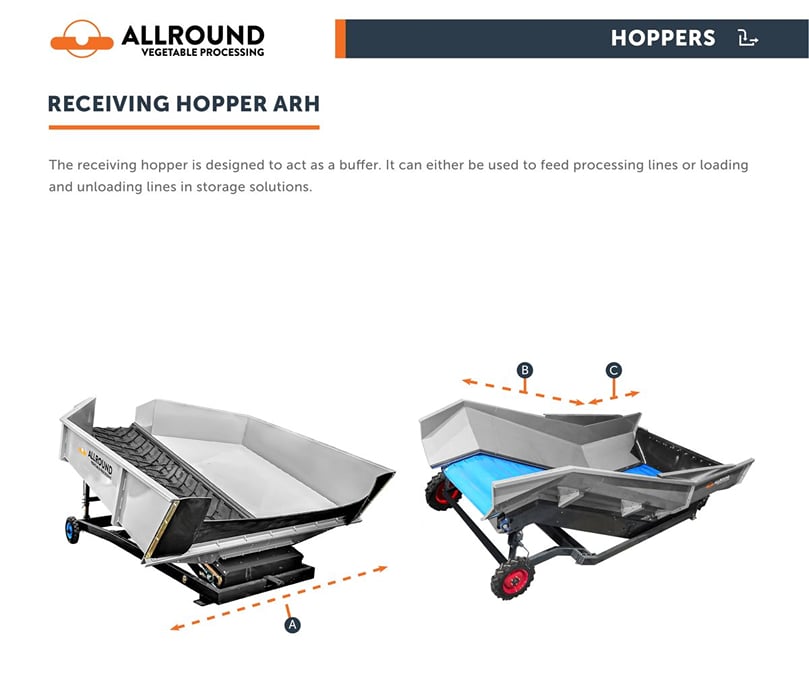

The Allround Receiving Hopper is designed to feed or act as a buffer in loading and unloading lines or processing lines. The hopper is designed in such a way that it can be fed by tip trailers, box tippers, and big bags.

Because of the angle of the machine, the flow of the product will always be even. Furthermore, a frequency inverter is fitted to the machine, to make sure the flow of the product is always adjustable.

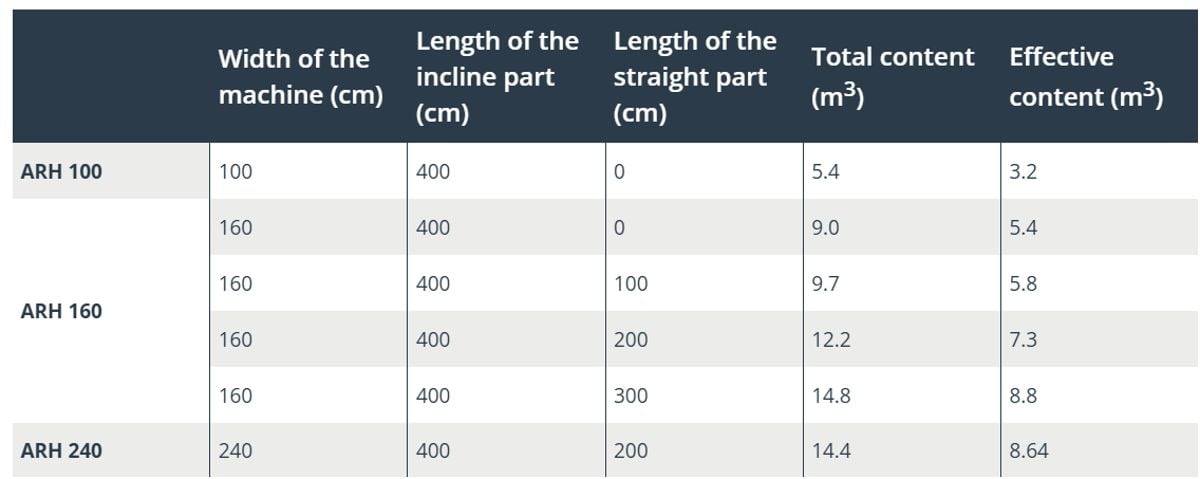

Types and specifications


ARH 100-400




Allround Receiving Hopper ARH 100-400

Allround Receiving Hopper ARH 100-400

  • Length - 4128 mm
  • Width - 2950 mm
  • The inclination of the bottom belt - 20°


ARH 160-500




Allround Receiving Hopper ARH 160-500

Allround Receiving Hopper ARH 160-500

  • Bottom width - 1600 mm
  • Bottom length - 4500 mm
  • Length - 6230 mm
  • Width - 3050 mm
  • Inclination of bottom belt - 17°


ARH 160-600




Allround Receiving Hopper ARH 160-600

Allround Receiving Hopper ARH 160-600

  • Bottom width - 1600 mm
  • Bottom length - 6029 mm
  • Length - 7642 mm
  • Width - 3050 mm
  • Inclination of bottom belt - 17°


ARH 160-500-200



(Click picture to watch video)
Allround Receiving Hopper ARH 160-500-200

Allround Receiving Hopper ARH 160-500-200

  • Bottom width 1600 mm
  • Bottom length 4500 mm
  • Length 6230 mm
  • Width 3050 mm
  • Inclination of bottom belt - 17°





ARH 240-600




Allround Receiving Hopper ARH 240-600

Allround Receiving Hopper ARH 240-600

  • Bottom width - 2400 mm
  • Bottom length - 6000 mm
  • Length - 8000 mm
  • Width - 3200 mm
  • Inclination of bottom belt - 23°
Options

Finger rollerset

​​​Finger roller sets are designed to take out loose skin and dirt. This raises the capacity of the line reduces the amount of dirt in the other machines and is the most gentle and efficient way of pre-cleaning.

Spiral rollerset

Pomme Parisienne Belt
