The Newtec Weighing Machine 4010XXB1CI is designed for accurate, very high speed for large and extra large products such as potatoes, onions and similar products.

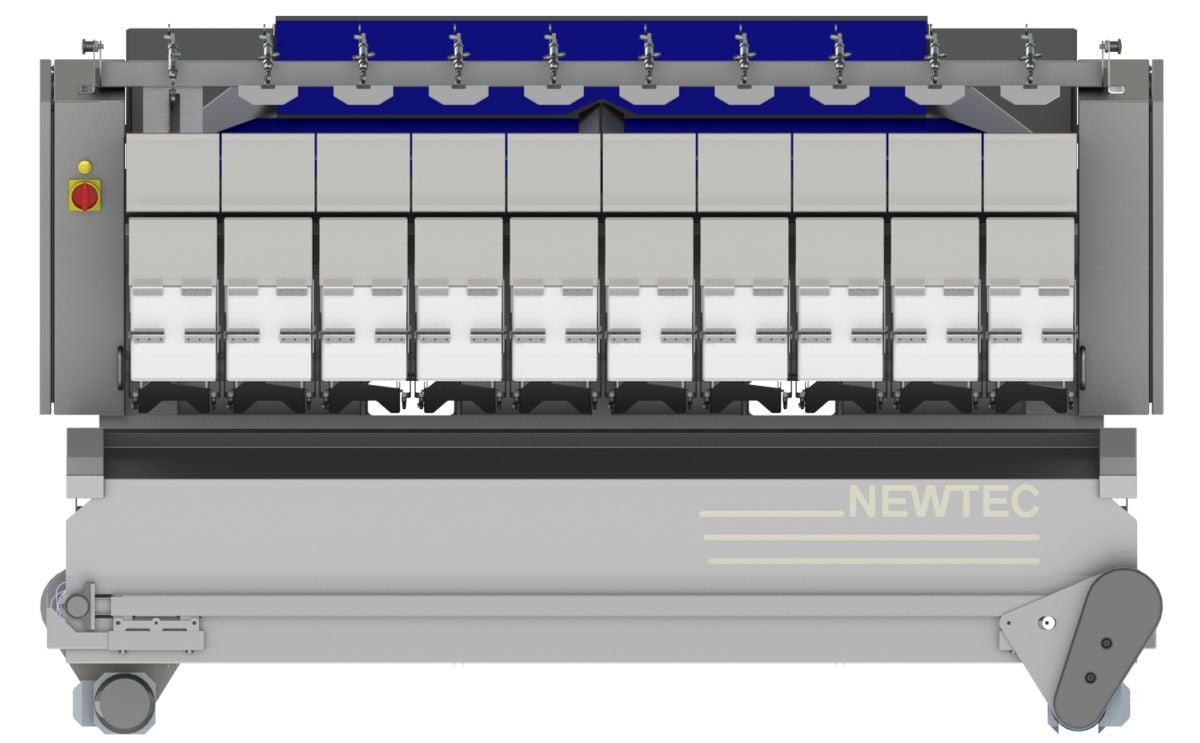

Newtec 4010XXB1CI front view
| Applications | Potatoes, onions and similar products. |
|---|---|
| No. of weigh heads | 10 |
| Width of weigh heads | 167 mm |
| Portion sizes | 1.00 - 25.00 kg |
| Speed | Up to 35 portions/min. |
| Product size | Ø: 20 - 160 mm, L: 20 - 230 mm |
| Dimensions without Portion Collection System | W: 2360 mm, H: 965 mm, D: 1346 mm |
| Air consumption and pressure | 100 NL/min., 6 bar (0.6Mpa) |
| Electricity consumption | 3x320 VAC or 3x400 VAC (N) PE 60 Hz 6 kW |
Select belt/outlet option
L+R
- R - Speed (up to) 30 portions/min.
- L+R - Speed (up to) 17 portions/min. per outlet
(Click picture to watch video)
Newtec Weighing Machine, Model 4010XXB1CI
