Allround Shake Grader SG 80-4

描述

The Allround Shake grader is designed to grade potatoes according to the square size. The potatoes are fed to the top of the machine onto the top sieve. The sieves in the machine shake in sequential frequencies, which causes the potatoes to move along on the sieves.

The movements of the sieves are caused by the motor on the front side of the machine. This motor drives a crankshaft. The crankshaft causes the shaking of the sieves. The motor of the machine has a computer-controlled frequency inverter, which causes the sieves to shake in several sequential frequencies.

Options

Steel screen (2x) 25 till 35 mm p/deck
Rubbered screens (2x) > 35 mm p/deck
Closed net screen (2x) p/deck
Sliding safety doors steel
Spunta bars 30mm p/4 pieces p/deck
Spunta bars 40mm p/4 pieces p/deck

Types and specifications

SG 60-4

(Click picture to watch video)

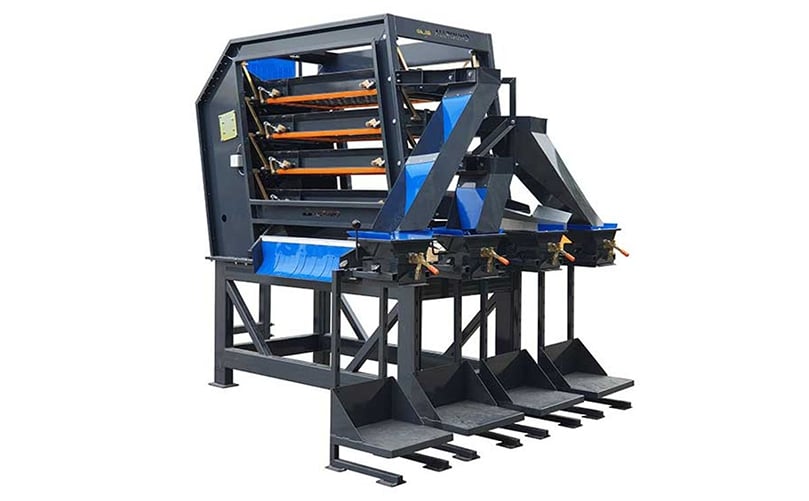

Allround Potato Shake grader SG-60-4

Length - 3500 mm
Width - 2700 mm
Width net screen - 600 mm
Number of sieve decks - 4

SG 80-4

(Click picture to watch video)

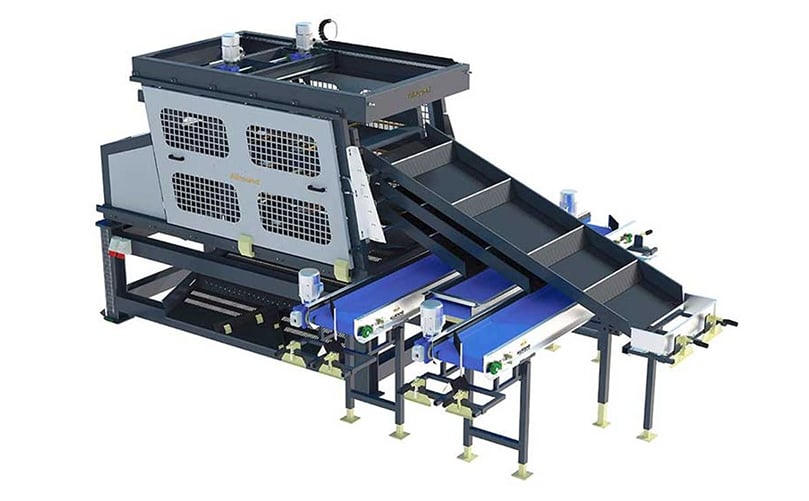

Allround Potato Shake grader SG 80-4

Length - 6000 mm
Width - 4200 mm
Width net screen - 800 mm
Number of sieve decks - 4

SG 120-5

(Click picture to watch video)

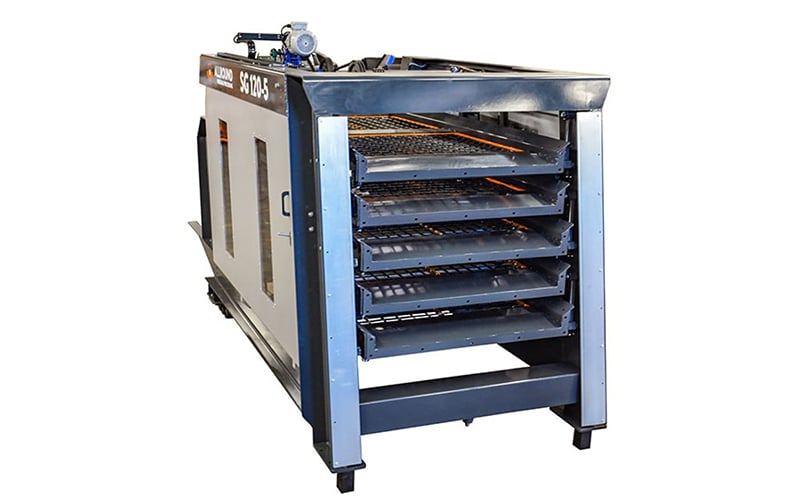

Allround Potato Shake grader SG 120-5

Length - 6700 mm
Width - 3600 mm
Width net screen - 1200 mm
Number of sieve decks - 5

SG 160-5

(Click picture to watch video)

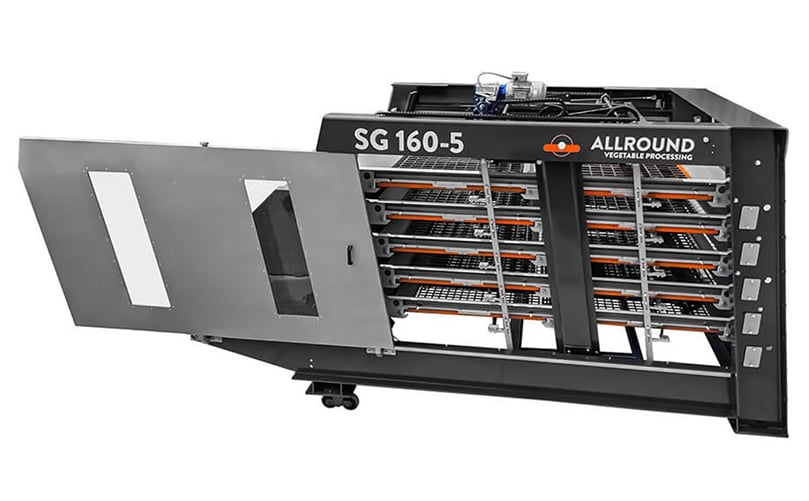

Allround Potato Shake grader SG-160-5

Length - 5358 mm
Width - 2280 mm
Width net screen - 1550 mm
Number of sieve decks - 5

Manufacturer

Allround Group

Allround is a trusted name in manufacturing and supplying machinery and equipment for post-harvest agri-horticulture, with special reference to the highly consumed and processed commodities like potatoes, carrots, and onions.
