MF 15x Receiving hopper filler for belt trailers

描述

Care for potato quality and capacity, from belt trailer to receiving hopper

With an MF 15x receiving hopper filler, you can quickly unload the product from a belt trailer into a receiving hopper. You can easily position an 800 mm wide, continuously adjustable supply conveyor below the belt of a belt trailer, so the product hardly experiences drop height or change of direction.

From a troughed supply conveyor, the product is placed on the 1500 mm wide 2-part discharge elevator of the MF 15x, which optimally discharges the product into a receiving hopper.

The wide discharge elevator of the MF 15x is fitted with a product sensor that is used to automatically adjust the top part of the elevator up and down to minimise drop height and make optimal use of the buffer capacity of the receiving hopper.

The MF 15x is simple to use, product-friendly and has a high capacity even at low belt speeds (up to 200 tonnes per hour).

Quality and reliability

Dewulf has many years of experience in the transporting of potatoes. The quality of Dewulf's belt conveyors has been achieved by working closely with the end users. As a result, our belt conveyors provide maximum capacity, full product flow and less risk of damage.

At Dewulf, the strength lies in simplicity; this makes their machines reliable and practically indestructible.

User and product-friendly

Dewulf's belt conveyors are equipped with various unique elements that promote user-friendliness. The pleasure from work is often achieved with minute details. For example, a broad, round rubber intake hopper ensures product-friendly filling from three sides without spilling potatoes or other crops.

Thanks to the troughed conveyor belts, high capacity is also obtained, without the product rubbing against the sides.

The right variant for you

The MF 15X receiving hopper filler for live bottom trailers has two variants to optimally meet your capacity needs:

2 variants

Dewulf MF 151

Dewulf MF 151

For use with one belt trailer
One continuously adjustable, 800 mm wide supply conveyor
1500 mm wide nodding discharge elevator

Dewulf MF 152

Dewulf MF 152

For simultaneous use with two belt trailers
Two separate, continuously adjustable, 800 mm wide supply conveyors
1500 mm wide nodding discharge elevator

Special Features

Efficiency gains with belt trailers
Product-friendly unloading
High capacity

(Click to enlarge)

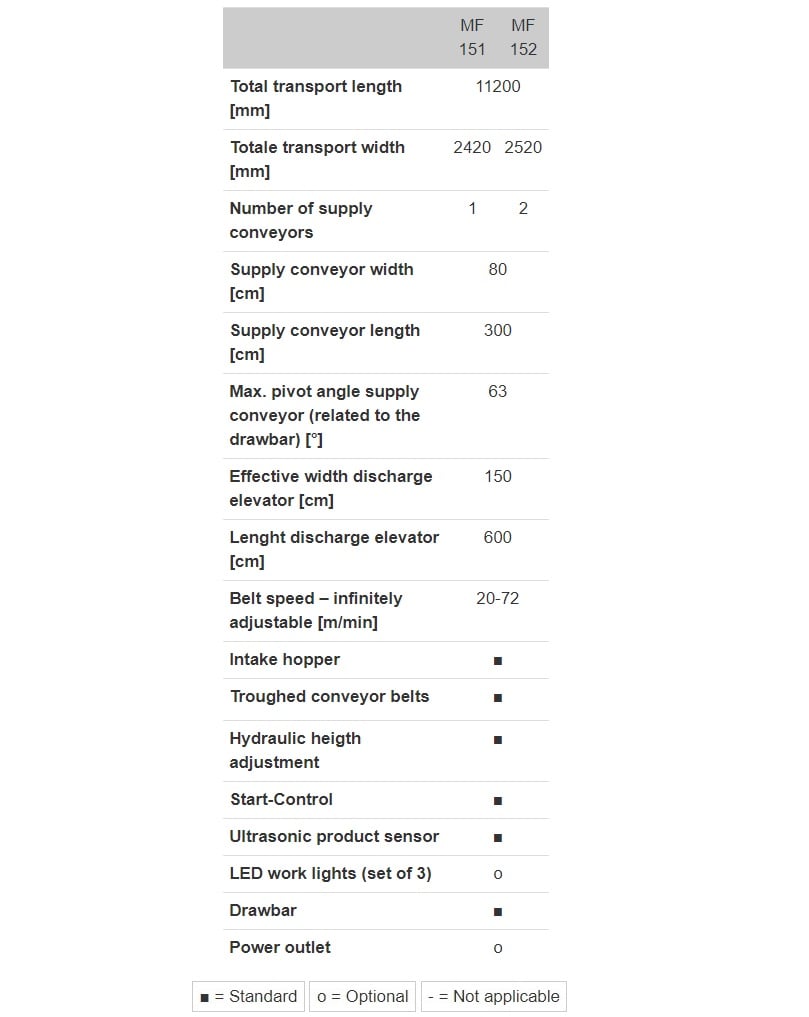

MF 15x Specifications
