Vanmark Peeler/Scrubber/Washer – 2920/2922

Descripción

Vanmark’s Peeler/Scrubber/Washers integrate the washing and peeling of a variety of products into one machine effectively and efficiently.

The 2920 and 2922 models are available with six or eight rolls and are specifically designed for a large scale, around-the-clock operations. Product is tumbled through a configurable combination of rollers, speed and settings – ensuring thorough cleaning and/or peeling.

Spray bars and optional reversing roll quickly remove peel waste and debris to increase efficiency. Vanmark’s exclusive Natural Flow Gate minimizes dead spots and over-peeling – increasing yield – due to its superior product tumbling design.

Customize the 2920/2922 Peeler/Scrubber/Washers for your specific application with a variety of options and accessories.

Clean and peel product efficiently and effectively in one machine
Standard flow rates up to 10,000 pounds per hour of storage potato capacity
Configure roll types, number of rolls, speed and discharge gates to your exact operation
Further specialize with options including: reversing roll, spray bars, CIP systems, drain pans and tumbling unit that continuously moves odd-shaped products
Exclusive Natural Flow Gate dramatically reduces peel loss and increases yield compared to conventional dams or auger gates
Sanitary design with quick roll change system and easy access peel chamber allows for quick and thorough cleaning

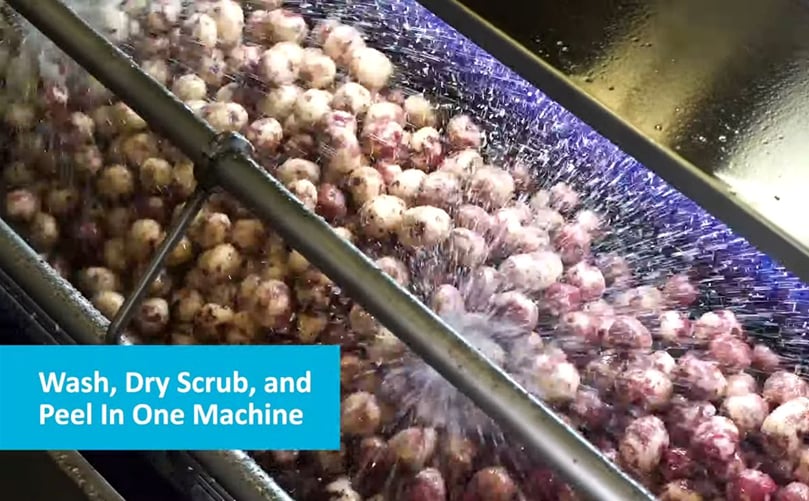

(Click picture to watch video)

Vanmark Peeler/Scrubber/Washer – 2920/2922

Roll Speed

100-550 RPM

Water

40 psi, 27 GPM maximum

Motor

Model 2920: 10 HP
Model 2922: 15 HP

Weight

Model 2920: 2,500 lbs. (1134 kg)
Model 2922: 2,900 lbs. (1450 kg)

Options: reversing roll, auger discharge, automatic lubrication system, under-roll or peel chamber CIP cleaning system, tumbling unit

Fabricante

Vanmark Equipment LLC

Vanmark es un fabricante líder de equipos de procesamiento industrial de papas y productos, trabajando con clientes para producir alimentos seguros y de alta calidad que ellos conocen y aman comer.
