tna roflo® HM 3

The tna roflo® HM 3 is a high-performance food conveyor system that handles products gently, yet efficiently, using a slow, forward horizontal motion, followed by a fast return horizontal motion. With no vertical element, this system minimises flavour loss and reduces seasoning build-up in the pan – making it an ideal transport solution for heavily-coated products.

Benefits


  • Achieve high performance with horizontal conveying at transfer speeds of up to 15m/min (49.2ft/min) and minimal coating loss.
  • Enhance operational efficiencies easily by deploying up to 30m (98.4ft) long pans on a single drive – reducing product drops and breakages.
  • Achieve ROI quickly with reduced product breakages and seasoning loss, thanks to its patented gateless design and gentle sweeping action.
  • Lower your TCO using multiple applications, including a switcheroo mechanism for total direction reversibility, and erector lifts for independent product flows.
  • Maximise uptime with fast cleaning times, thanks to its stainless-steel construction, quick-release and easy-access pans that keep product and seasoning build-up to a minimum.
  • Promote a healthy work environment with low-noise conveyors that produce less than 70dB(A) sound pressure levels and save energy with highly efficient single-drive operation.

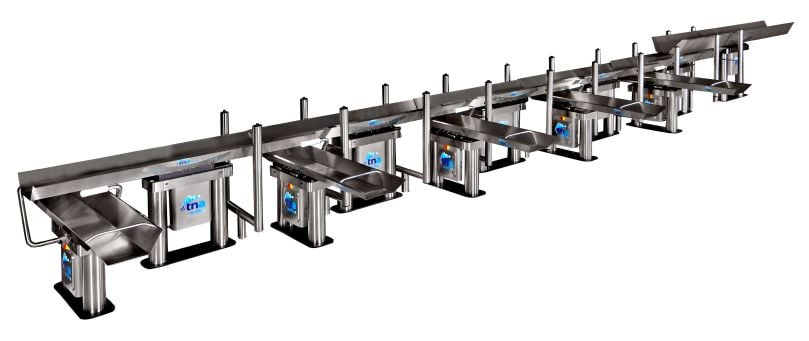

(Click picture to watch video)tna roflo 3 Packaging animation

tna roflo 3 Packaging animation

Standard features


  • tna switcheroo design for total direction reversibility
  • Unique gateless design
  • Stainless steel pans
  • Instantaneous conveyor movement
  • Programmable closed-loop servo
  • Drives – long stroke, low frequency
  • 2.4m, 3.0m and 3.6m (95″, 118″ ad 142″) standard pan lengths
  • 1 controller for up to 8 pans
  • Upstream call output (UCO)
  • Auto stand-by


Optional features


  • Lifteroo
  • Bi-directional and reversible feed
  • Custom length pans
  • Long pan lengths over 30m (1181″)
  • Proportional discharge control (pdc)
  • Plant integration control (PIC)
  • Product metering
  • On-line seasoning
  • Quick release pans

tna roflo HM 3 brochure

(Click to download the full brochure | PDF) tna roflo HM 3 brochure

tna roflo HM 3 brochure

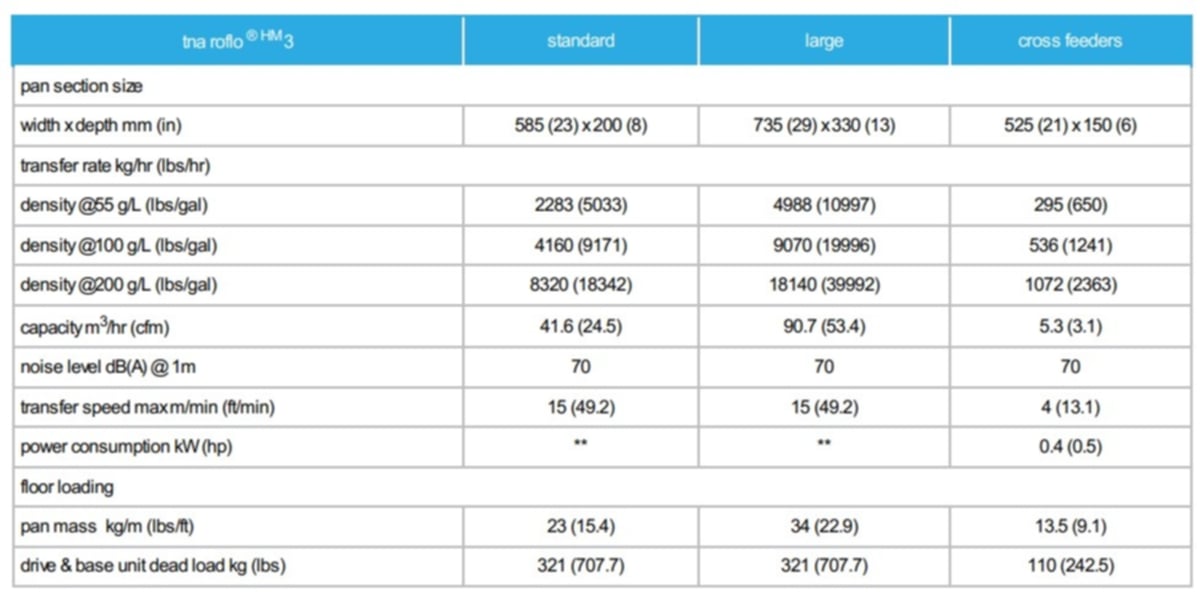

(Click to enlarge)tna roflo® HM 3 specifications

tna roflo® HM 3 specifications

All above specifications are subject to change and may differ according to the product, please confirm when placing your order.
