A high-pressure ammonia reciprocating compressor making the most efficient NH₃ heat pump GEA RedGenium Best-in-class. The GEA Grasso V series stands for reduced total cost of ownership (TCO) thanks to less power consumption and maximum reliability. This proven high-efficiency compressor concept is available for heat pump applications.

The GEA Grasso V XHP series can now provide water temperatures up to +95 °C and a larger capacity range with a maximum design pressure of 63 bar. This makes these new models the first choice for all hot water applications up to +95 °C to meet industrial requirements in the food industry and elsewhere, especially for cleaning and processing.

The V XHP will be available in four different types (4; 6; 8 and 10 cylinder). The V XHP is the heart of our successful GEA RedGenium models and also available in a package. An external oil pump on the new models ensures important pre-lubrication and a guaranteed continuous oil flow for maximum reliability in full and part load conditions.

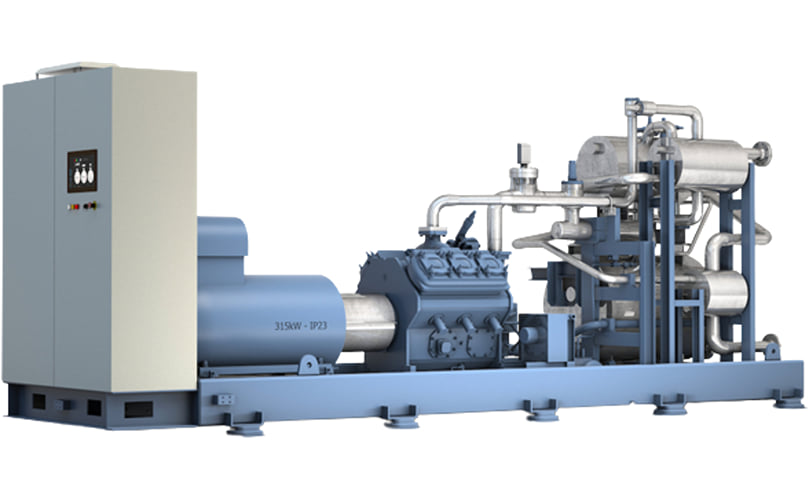

Gea Grasso V XHM TCM

Gea Grasso V XHM TCM

The state-of-the-art GEA Omni control panel with built-in control apps unlocks the sophisticated operating options of the compressor. In short, the new V XHP is true to its roots in the V series philosophy, which has efficiency in its DNA, but it’s even hotter!

Highlights & Technical Features

  • Safety: A multi-stage safety chain against excess pressure.
  • High-end design: Specific heat pump design and component with an industry leading GEA Omni control panel.
  • Sustainability: By using NH3 there is a global warming potential of zero.
  • Reliability: A factory-tested new compressor embedded in a proven design by a manufacturer with long-term experience with heat pumps.
  • Performance: The 10-cylinder compressors offer a maximum heating capacity of approximately 2300 Kw under conditions to +35 °C and +95 °C.

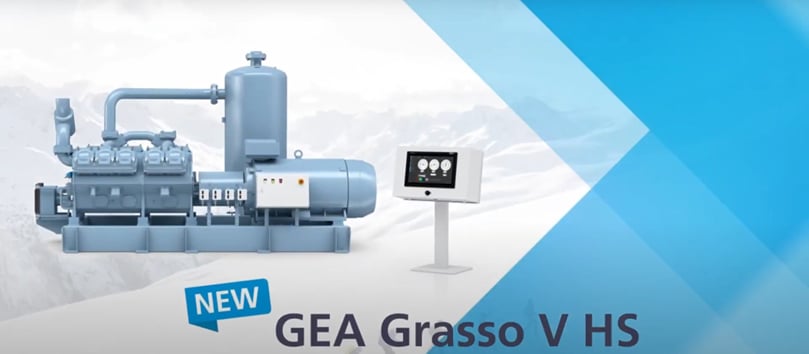

(Click picture to watch video)GEA Grasso V HS - High speed reciprocating compressors for more capacity

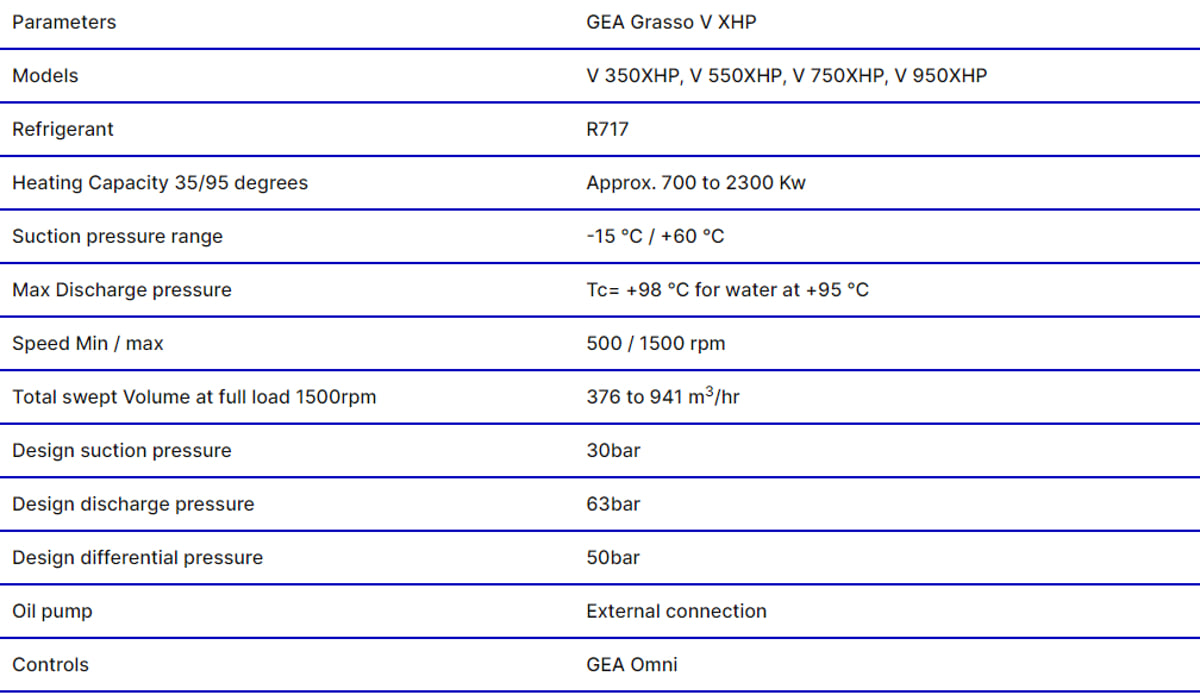

GEA Grasso V XHP Parameters



This product was part of the Interpom 2022 Innovation Tour

(Click to enlarge)GEA Grasso V XHP Parameters

GEA Grasso V XHP Parameters
