The GRIMME EVO 290 is a high-performance two-row trailed potato harvester, representing the evolution of the proven SE principle. This principle integrates soil sieving, crop conveying, and haulm separation into a single, efficient process.
Designed for maximum productivity and efficiency, the EVO 290 features a large 9-tonne bunker, enabling high field output and reducing the need for frequent unloading. For continuous harvesting, a patented 5.5-tonne unloading bunker (NonstopBunker) allows operation without interruption, increasing digging capacity by up to 20–30%.
The innovative TriSys tricycle chassis improves load distribution, increasing the soil contact area by up to 65%, reducing soil compaction, and ensuring excellent stability during unloading. All three wheels can be hydraulically driven and steered for maximum traction and manoeuvrability.
The machine is equipped with advanced features such as VarioDrive for infinitely variable main web speed control, independent of PTO speed, and reversible operation to clear blockages. Optional assistance systems like Speedtronic automate web and separator speeds, reducing operator workload and improving crop protection.
With ISOBUS control and integrated telemetry via myGRIMME, the EVO 290 enables real-time data monitoring, documentation, and connectivity with farm management systems. Additional features like MemoryControl and SmartConnect enhance operational efficiency and data management.
The EVO 290 also offers exceptional versatility. With EVO AllCrop modifications and ChangeSep technology, the machine can be adapted for harvesting various crops such as carrots, onions, parsnips, beetroot, and celeriac. The TerraControl intake system further allows quick conversion between crop types without additional mechanical adjustments.
Product Specifications
Standard Equipment:
- Offset-pulled intake section with spring-loaded disc coulters
- Tractor attachment with hitch below the PTO shaft
- Hydraulic jack stand
- Hydraulic drawbar steering with automatic self-centre steering
- Automatic ridge relief
- Main web channel width: 1500 mm
- Main web: 28, 32, 35, 40, 45 or 50 mm pitch (lock connection)
- Stainless steel swing frame
- Speed-adjustable rocker agitator in the 1st main web via operator terminal
- Deviner web with scraper (200 or 280 mm pitch)
- Self-contained hydraulic system for separator drive
- Slip control for 1st separator and 2nd main web
- Height adjustment of 1st separator scraper roller via terminal
- Speed adjustment of finger webs (ClodSep separator) via terminal
- Speed adjustment of 1st and 2nd separators via terminal
- Trash web control with differential speed (ClodSep separator)
- Platforms on both sides of the picking web
- Final conveyor with ultrasonic sensor
- Bunker unloading height: 4450 mm
- Automatic bunker filling with optimisation system
- Hopper capacity: 9000 kg
- Two-speed bunker emptying
- Warning system for tractor driver
- TriSys tricycle chassis for reduced soil compaction
- Wheels: 710/50-30.5
- Hydraulic axle steering
- Automatic axle self-centre steering and levelling
- ISOBUS control system
- MemoryControl system
- GRIMME SmartConnect telemetry unit with connectivity to myGRIMME
- MOT certification (Germany), including brakes and road lighting

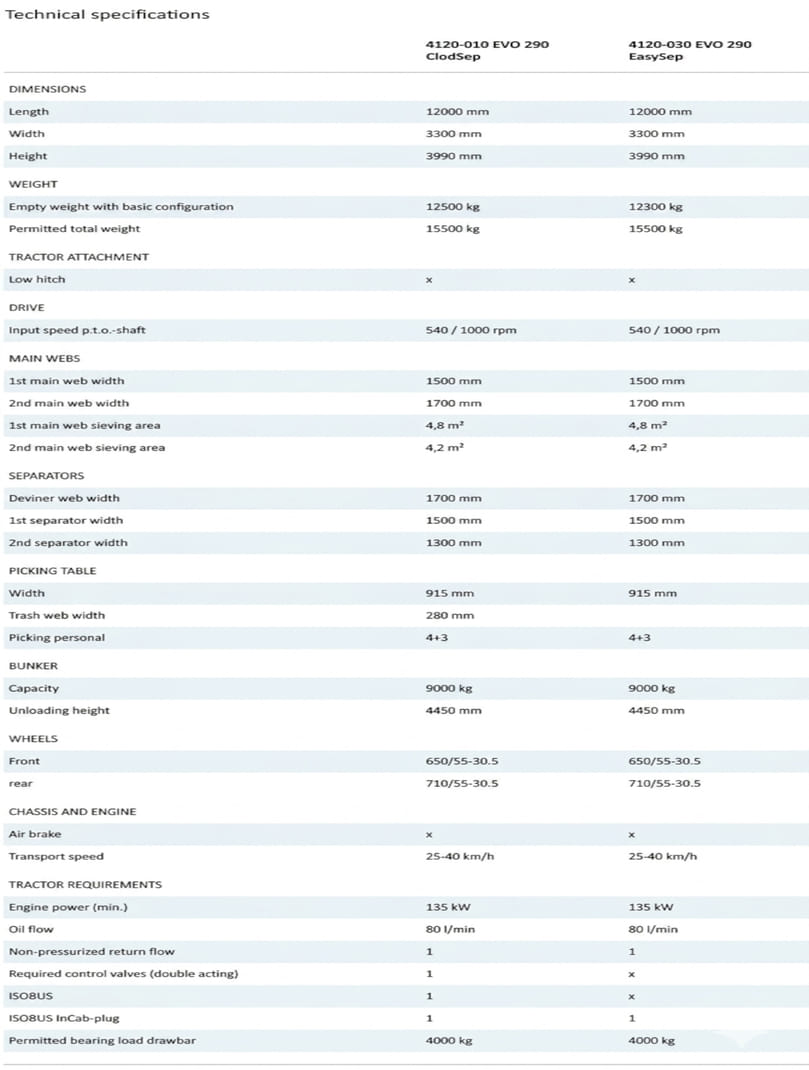

Grimme EVO 290 Technicial Specification
