The Wyma Micron Filter XL is an ultra-fine, high capacity, self-cleaning, compact and cost-effective second stage water treatment solution. It filters to levels much finer than traditional first stage filters removing a significant amount of organic matter and debris from water in a single pass so that the water can be easily reused. This unique filtration system has been developed by and is exclusive to Wyma Solutions.
Filtration levels range from 0.075 to 0.25mm. Capacities at 0.15 mm (100 US mesh) filtration range from 5 to 50 litres per second (18 to 180 cubic meters per hour or 4,700 to 47,000 gal per hour). Actual capacity dependent on solids loading. Total Suspended Solids (TSS) reductions of greater than 60%* have been recorded on wash line and processing line wastewater, as well as reductions of BOD and COD greater than 50%*. (*Situation dependent.)
Dirty water or slurries are pumped directly into the filter from the base of washing systems such as a Wet Hopper, Barrel Washer, Destoner, Vege-Polisher™, Peeler, or a collection pit/sump. Water and fine particles pass through the filter mesh into the tank below, whilst larger organics and debris are extracted for disposal. An auger in the tank manages the removal of fine sediments.
External pumps are provided to pump the filtered water back to the process or wash line for reuse. Other features include auto-emptying, automated self-cleaning, and a system to prevent solids build up in the tank.

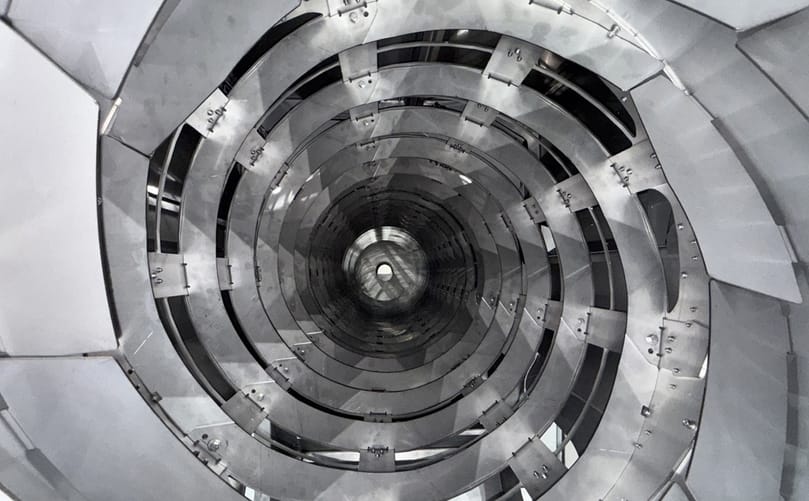

Wyma Micron Filter XL filtration chamber supports efficient water reuse by removing fine debris and improving recycled wash water quality
Features
- Self cleaning
- Very low maintenance
- Easy extraction of waste
- Small footprint
- Multiple pump options
- Easy operation
- Automated water level
- Durable and robust construction

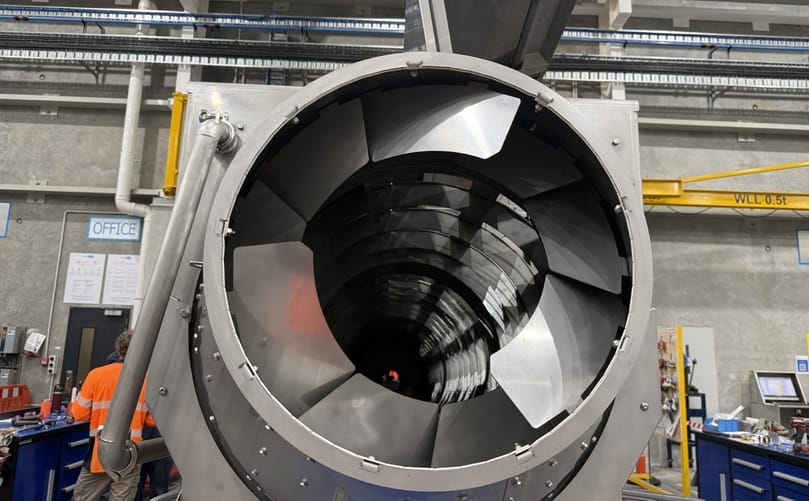

Internal view of the Wyma Micron Filter XL, designed for high-capacity removal of fine solids and organic matter from process water in fresh produce wash lines
