Dewulf Field Loader 240 Transfer combi

High amount of net product in the truck

With the Field Loader 240, growers drastically reduce the amount of soil and waste that accompanies the product during loading in the field. This is because tipping trailers can unload the product directly into the transfer combi for cleaning before it is loaded into a truck. With this machine, transport vehicles are optimally filled with net product.

Suitable for on-road use

The Field Loader 240 is a compact transfer combi suitable for road transport.





The optional steered axle also makes the machine extra manoeuvrable (20°).

In the field it takes just a few minutes to prepare the machine for use.

High cleaning capacity & product-friendly discharge elevator

The bunker floor and the roller unit, familiar from the MH series, ensure a good product flow and provide the necessary cleaning. The inspection table has space for two people.

The wide, 4-piece, product-friendly discharge elevator of the Field Loader 240 has an extremely wide pivot range of 120° (60 left + 60 right) and can reach deep into a truck. Active side plates and soft flights prevent product damage.

A true stand-alone transfer combi

With the optional built-in diesel generator the Field Loader 240 can be used anywhere. The super-silent generator (80 dB max.) can also be detached so it can be used for other purposes. In addition, the Field Loader 240 can also simply be connected to mains power.

The Field Loader 240, like all other Dewulf storage machines, offers low power consumption.

Special Features









  • Suitable for road transport
  • 4-piece discharge elevator with an extremely wide swing radius
  • Built-in, super-silent diesel generator





(Click to enlarge)

Capacity

(Click to enlarge)

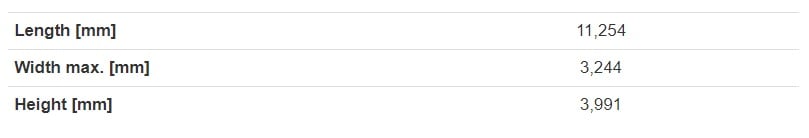

Dimensions [transport position]

(Click to enlarge)

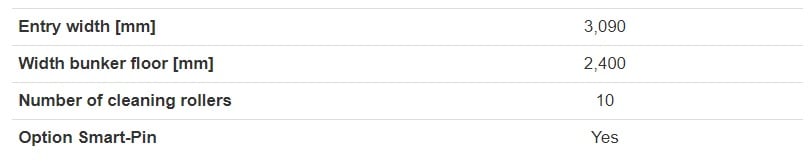

Bunker

(Click to enlarge)

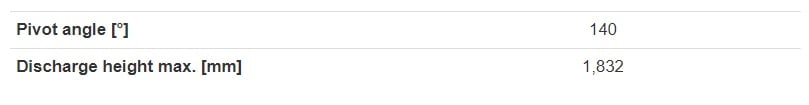

Waste conveyor

(Click to enlarge)

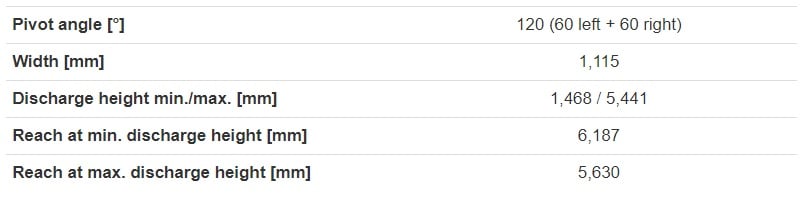

Discharge elevator

(Click to enlarge)

Diesel generator
