The GRIMME KT-75 is a tractor-mounted, single-row potato harvester designed for high-value crops that require gentle handling. The machine is hydraulically driven using the tractor’s hydraulic system, ensuring smooth and controlled operation.
It features a digging unit combined with a selection table that accommodates 2 to 4 operators for sorting and grading the harvested crop. The selected potatoes are directly loaded into large boxes with a capacity of up to 750 kg as standard, with alternative box systems available as optional configurations.
The harvesting unit includes a wide intake section (approximately 75 cm), equipped with two spring-loaded intake discs, haulm wheels, and a floating diablo roller, along with a forked share system for efficient lifting of the crop.
Haulm is removed effectively by a spring-loaded haulm roller positioned at the rear of the digging section. Additionally, the machine is equipped with a shaker system to enhance soil separation and ensure cleaner produce.
Product Specifications
Standard Equipment :
- Intake width: 620 mm
- Plastic diablo roller: Diameter 390 mm
- Full-width (through-type) share blades
- Two disc coulters
- Plastic diablo rollers
- Main web channel width: 750 mm
- First main web: 36 mm pitch with straight bars
- Manual speed adjustment of the first main web via flow control valve
- Two triangular rollers in the first main web
- Manual adjustment of triangular rollers using a hand lever
- Divided picking table with:
- Crop conveyor (front)
- Trash conveyor (rear)
- Crop conveyor: 28 mm pitch, rubber-coated, width 440 mm
- Trash conveyor: 28 mm pitch, rubber-coated, width 310 mm
- Box platform: BASIC
- Wheels: 10.0/75 x 15.3
- Operator unit “i6”: Control box for switching hydraulic functions on/off

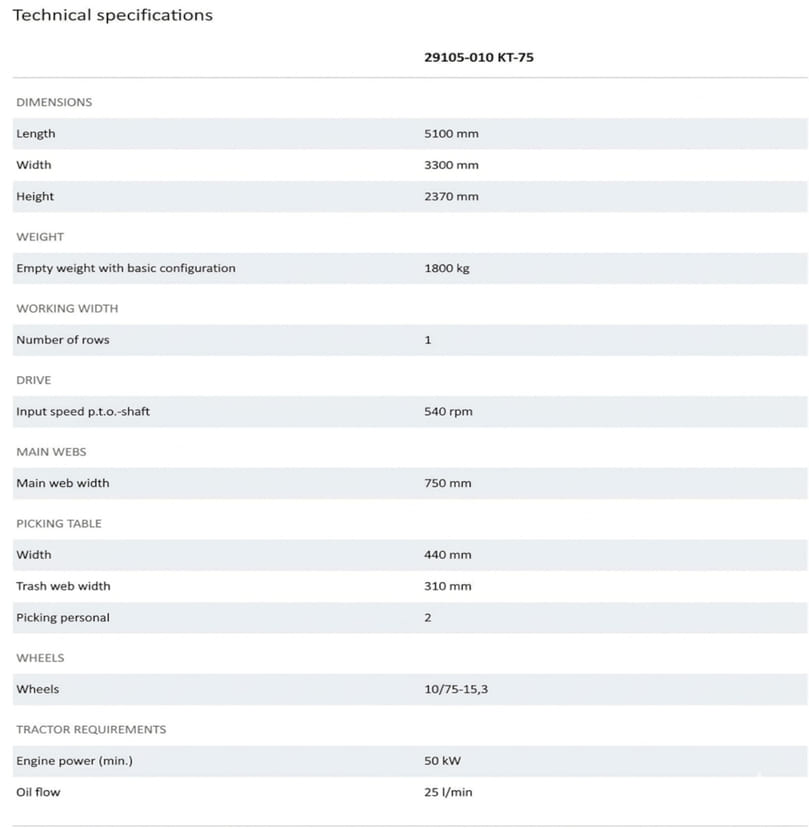

Grimme KT-75 Technical specification
