Newtec Optical Sorting Celox-P-UHD

Newtec's optical sorting machine for potatoes, model Celox-P-UHD, is designed to sort potatoes by size, shape and quality in a single-stage process. The machine sorts washed potatoes directly, eliminating the need for pre-grading and minimising the need for manual labor, whilst ensuring consistent quality and high throughput.

Up to 16 categories of products can be sorted out simultaneously. Sorting criteria for these categories are instantly customisable according to the current needs. Premium product selections can effortlessly be sorted out of bulk produce.

(Click picture to watch video)
Newtec optical sorting machine for potatoes, Celox-P-UHD

Newtec optical sorting machine for potatoes, Celox-P-UHD


Advantages
  • Quality, size and shape sorting in one machine
  • Accurate selection of high-value products
  • Consistent quality output
  • No need for mechanical pre-grading
  • Gentle product handling
  • Robust stainless steel construction
  • Modular design for future extension (up to 16 categories/outlets)
  • WebServices, our data collection system, enables capturing of complete product information and remote servicing.

Capacity

  • Celox-P-UHD for potatoes: Up to 30 tonnes of product/h. depending on the size of the potatoes.
  • Choose between 4, 8 and 12 lanes depending on required capacity.


Infeed section


Infeed section

Infeed section

The infeed section receives products and conveys them into the camera section. Advanced computer control ensures optimum throughput on all lanes.



Camera section


Camera section

Camera section

In the camera section each product is inspected to capture accurate data on size, shape and surface quality. Each product is evaluated according to the grading parameters chosen by the operator.

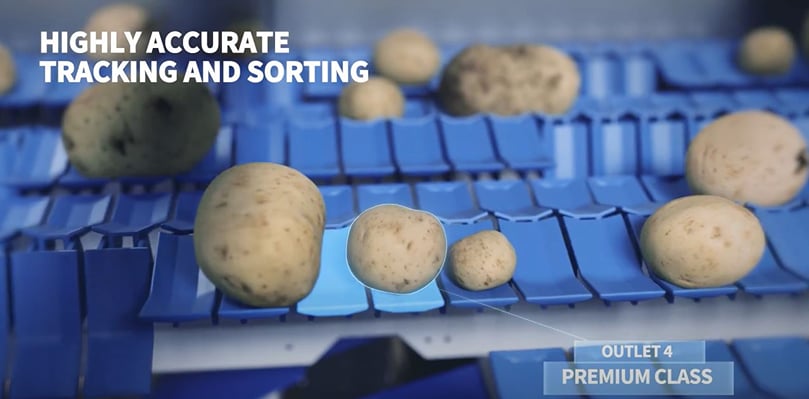

Spinaflex™ section


Spinaflex™ section

Spinaflex™ section

Products reach the Spinaflex™ section as they leave the camera section. The Spinaflex™ belt routes each product to the correct outlet.



The Celox P-UHD handles products very gently.

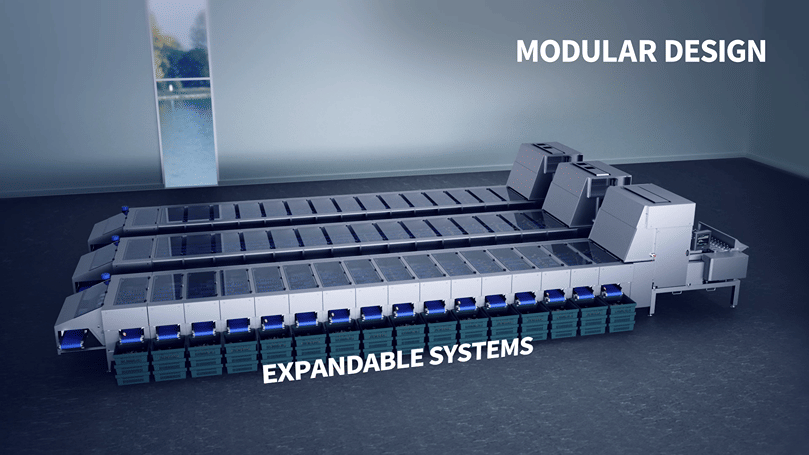

Celox solution with 2xCelox-P-UHD.
Celox solution with 2xCelox-P-UHD.
  • The product drop height is very low.
  • The Spinaflex™ belt routes products at low speed with minimum amount of shocks.


Sorting in the most profitable way

Every single potato is assessed in the camera section. The extended camera section is equipped with 3 cameras that photograph each and every potato up to 45 times to capture precise data on size, shape and surface quality.

Newtec camera vision system

Newtec camera vision system

The design of their camera sections is adapted to potatoes. The potatoes are conveyed and led through the camera section on vibrating rollers - a unique and patented system which ensures that the potatoes are inspected from all angles because they rotate while they are propelled forward by gentle roller vibrations.

(Click picture to watch video)
Newtec Optical Sorting Machine, Model Celox- P-UHD, - Size: 20-28 mm. square mask

Newtec Optical Sorting Machine, Model Celox- P-UHD, - Size: 20-28 mm. square mask

The machine is constructed with maximum efficiency in mind, combining high production throughput with a relatively small footprint.

They are proud to offer an efficient and space-saving machine that ensures a very thorough quality check and classification of every single crop before it is presented in the sales packaging. They look forward to optimising the value of each of your potatoes by sorting them in the most profitable way.


Newtec potato sorting, model Celox-P-UHD 12L


(Click to download the full report | PDF)
Newtec Optical potato sorting, model Celox-P-UHD 12L

Newtec Optical potato sorting, model Celox-P-UHD 12L



Newtec potato sorting, model Celox-P-UHD 4L


(Click to download the full report | PDF)
Newtec potato sorting, model Celox-P-UHD 4L

Newtec potato sorting, model Celox-P-UHD 4L
