PPM Slurry Applications

PPM Technologies slurry application systems are designed to deliver precise and consistent pressure coatings of high-viscosity liquid and slurry mixtures, with accurate weight pick-ups from 1% to 100%.

These versatile machines are suited for cheese/oil/whey mixtures, seasoning, honey, sugar glazes, sugar frostings, tallows, digests, gels, gums, egg powders, oil suspensions and many more.

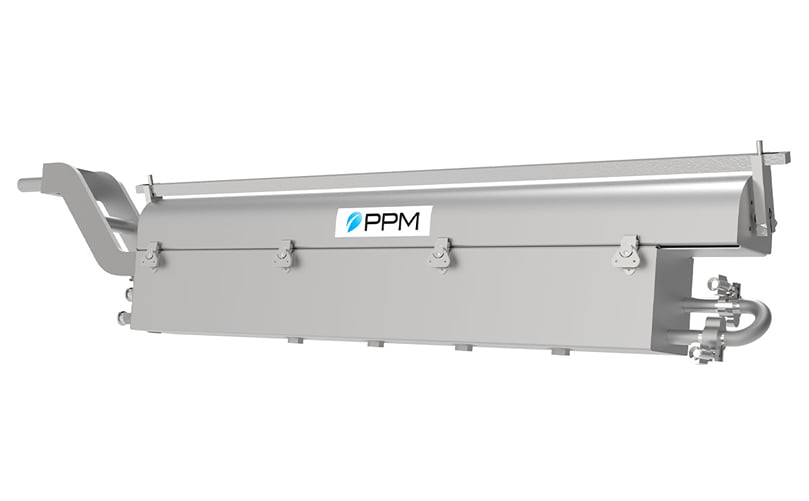

  Slurry spray manifolds are engineered to be versatile, with interchangeable threaded nozzles for easy cleaning or quick changeouts. To prevent clogging, slurry nozzles feature air-actuated cleanout pistons that can be controlled using the system’s touchscreen PLC.

Unlike competing systems that use multiple pumps to control each individual nozzle, PPM slurry systems employ one continuous pump to feed all the nozzles within the manifold, resulting in reduced parts wear and maintenance time.

Slurry applicators can utilize a variety of positive displacement pumps – peristaltic, gear or lobe – determined by customer requirements and/or specific product characteristics.

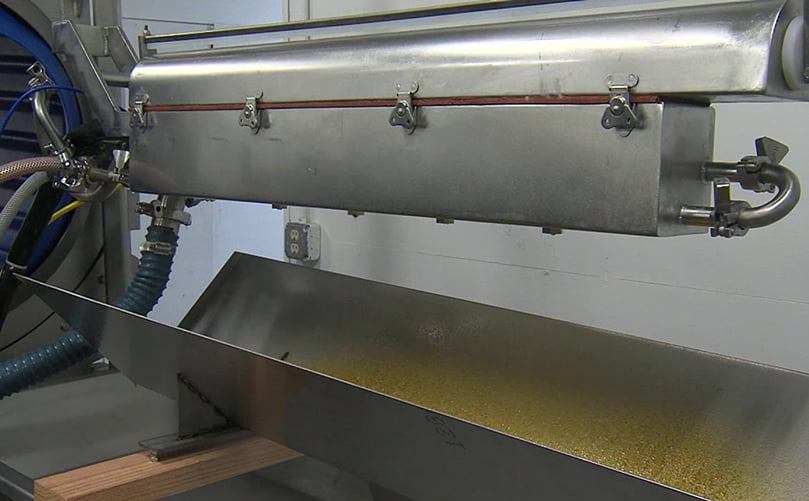

Slurry Applicator and Twin-Tank System

Twin-Tank System
  The twin-tank system provides mixing, blending, temperature control, storage and uninterrupted dispensing of liquid and slurry mixtures to spray applicators.

PPM’s twin-tank system utilizes multiple closed recirculation loops to avoid product solidification and ensure the product remains in suspension even when your solution is not being sprayed. Mix and use tanks are available in single-wall or double-wall insulated designs, and come in various standard sizes.
  Performance Highlights

• Handles dense slurries and particles to ¼” (6.4mm)
• No separation of suspensions
• 1% to 100% weight pick-up
• Precise, repeatable coating
• No exposed air tubes in product zone

Product Testing and Development Program

PPM can help you develop the most efficient seasoning and coating process for your specific needs, through their product testing and development program. With multiple complete seasoning systems available, their technicians are prepared and ready to help you test powder, oil or slurry applications.
