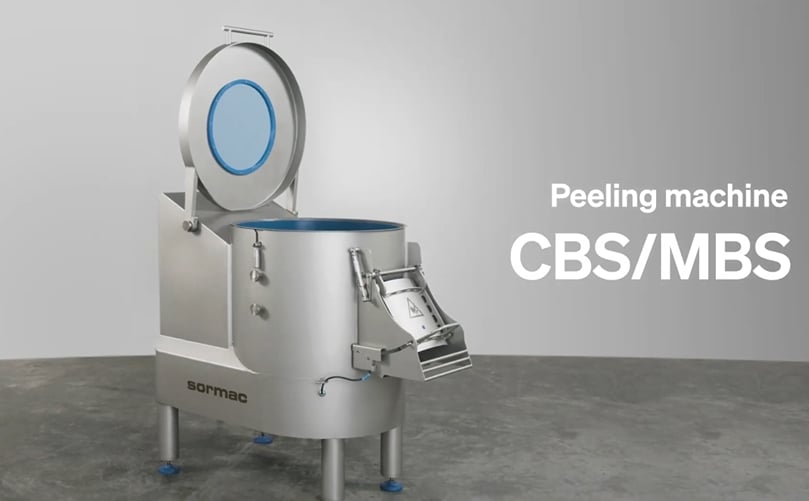

Sormac Peeling machine CBS / MBS
Product Description
The Sormac peeling machine is ideal for carborundum and knife peeling of root products such as potatoes, celeriac, kohlrabi, red beets, and baby carrots. In the carborundum version (CBS-60) the machine has a carborundum-covered interior and a carborundum disc.
The peeling disc can be taken out and is designed to enable the product to rotate within the machine. This allows the product to be peeled evenly around without flat peeling.
In the knife peeling version (MBS-60), the product is knife peeled to obtain a smooth surface. Any potential bruising and peeling losses are greatly reduced thanks to precision knife adjustment and the blue rubber skin inside the drum. The construction is very compact with the motor inside the machine. For cleaning purposes, the machine is equipped with legs.
Options
The peeling disc can be taken out and is designed to enable the product to rotate within the machine. This allows the product to be peeled evenly around without flat peeling.
In the knife peeling version (MBS-60), the product is knife peeled to obtain a smooth surface. Any potential bruising and peeling losses are greatly reduced thanks to precision knife adjustment and the blue rubber skin inside the drum. The construction is very compact with the motor inside the machine. For cleaning purposes, the machine is equipped with legs.
(Click picture to watch video)
FeaturesSormac - Potato batch peeler, type MBS-60
- Exchangeable drum and disc
Easy change-over enables both abrasive and knife peeling. - Exchangeable baffles
Exchangeable baffles for optimal peeling of different root vegetables. - Magnetic security
A magnet ensures that the lid does not rise during production.
Options
- Pneumatic outfeed flap
Empties the drum automatically. The machine can be combined with a supply conveyor with a timer to create an automatic processing line.
- Supply conveyor with timer
A supply conveyor with a timer enables the automatic operation of the peeler.
- Additional drum and disc
An additional drum and disc set to convert the machine from an abrasive peeler to a knife peeler or vice versa.
- Non-standard carborundum size
Adjusted to the different products.
Product Specifications
These peeling machines are suitable for peeling potatoes, celeriac, kohlrabi, etc. with a diameter between 10 – 180 mm.
Capacity
The CBS abrasive peeler and MBS knife peeler have an input capacity up to 1,000 kg per hour, depending on product type and required waste percentage.
Technical data
Capacity
The CBS abrasive peeler and MBS knife peeler have an input capacity up to 1,000 kg per hour, depending on product type and required waste percentage.
Technical data
- Type: CBS-60 MBS-60
- Voltage: 400V, 3ph, 50Hz 400V, 3ph, 50Hz
- Installed power: 1.1 kW 1.1 kW
- Dimensions (LxWxH): 1,130 x 710 x 1,070 mm 1,130 x 710 x 1,070 mm
- Infeed height: 980 mm 980 mm
- Outfeed height: 505 mm 505 mm
- Execution: carborundum C24 knives
- Type:MBS-60
- Voltage:400V, 3ph, 50Hz
- Installed power:1.1 kW
- Dimensions (LxWxH):1,130 x 710 x 1,070 mm
- Infeed height:980 mm
- Outfeed height:505 mm
- Execution: carborundum C24 knives
