Allround Industrial Potato washing line 500 series (1)

Allround Industrial Potato washing line 500 series (1)

Allround Industrial Potato washing line 500 series

Bookmark
Allround Industrial Potato washing line 500 series (1)

Allround Industrial Potato washing line 500 series (1)

This line is designed to wash industrial potatoes. The principle is that a box is placed in the machine, which then slowly tilts the box so that a hopper or elevator is filled. This is line includes the washing machine U 500. The U 500 is designed to operate with a water basin. In this water basin, the water used in the machine is recirculated to be used again.

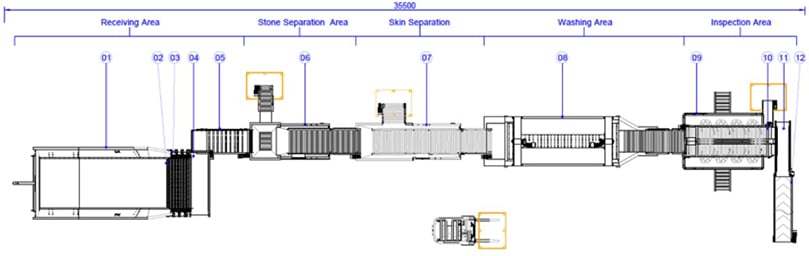

(Click to enlarge)2D Allround Industrial Potato washing line 500 series (1)

2D Allround Industrial Potato washing line 500 series (1)

Machinery list
  • Receiving hopper - ARH 240-600
  • Spiral roller set - VS 240-8
  • Waste belt - TB 300-80
  • Product belt - TB 300-60
  • Elevator - EL 325-100
  • Destoner - D 150
  • Skin seperator - SK 150
  • Washing machine - U 500
  • Roller inspection table - RI 120-500
  • Waste belt - TB 250-40
  • Transport belt - TC 250-60
  • Trough Belt - 70-length required


Industrial potato washing line 500 series (2)

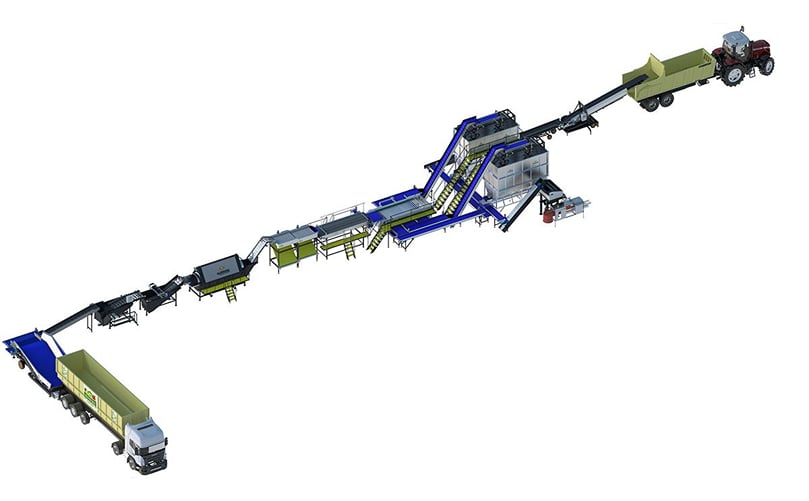

Allround Industrial potato washing line 500 series (2)

Allround Industrial potato washing line 500 series (2)

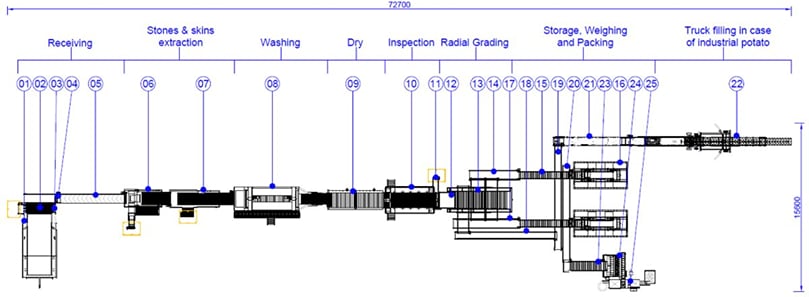

(Click to enlarge)2D of Allround Industrial potato washing line 500 series (2)

2D of Allround Industrial potato washing line 500 series (2)

Machinery list
  • Receiving hopper - ARH 240-600
  • Spiral roller set - VS 240-8
  • Waste belt - TB 350-80
  • Product belt - TB 350-80
  • Through belt - 675-80
  • Destoner - D 150
  • Skin seperator - SK 160
  • Washing machine - U 500
  • Dryer - DR 140-17
  • Roller inspection table - RI 500-120
  • Waste belt - TB 300-40
  • Infeed belt - TB 150-10
  • Radial grader - R 170-70-3
  • Transport belt - TC 475-80
  • Swan neck elevator - ELK 775-150-60
  • Storage hopper - SH 50-25-32
  • Transport belt - TC 900-60
  • Transport belt - TC 900-60
  • Transport belt - TC 900-60
  • Transport belt - TC 900-60
  • Duo belt - ATC 750
  • Space finder - ASF 950
  • Elevator - EL 525-80
  • Multihead weighed - M10 (Manter)
  • Rollstock bagger - RSB-M (Manter)


Allround Box Storage

With Allround box storage the products are stored in large bins. The product is stacked up to about 6 boxes high. Box storage is a very flexible way to store agricultural products.

Allround Receiving Hopper

The Allround Receiving Hopper is designed to feed or act as a buffer in loading and unloading lines or processing lines. The hopper is designed in such a way that it can be fed by tip trailers, box tippers, and big bags.

Allround Shake Grader

The Allround Shake grader is designed to grade potatoes according to the square size. The potatoes are fed to the top of the machine onto the top sieve. The sieves in the machine shake in sequential frequencies, which causes the potatoes to move along on the sieves.

Allround Polisher

Allround polishers are designed to polish produce. The TD (turning drum) machine consists of a rotating drum with counter-rotating brushes.
