DK Transportbaand's HoneyComb Belt is an ideal solution for industrial applications that require positive drive, precise timing, and reliable product transfer—particularly in environments involving inclines, declines, long distances, or heavy loads.
Thanks to its open design, the HoneyComb Belt is especially well-suited for applications demanding high airflow and effective drainage. This makes it a perfect choice for processes such as washing, cooling, freezing, baking, and more.
HoneyComb Belts from DK Transportbaand are renowned for their durability, strength, and long service life. To ensure optimal performance across a range of load and process requirements, the belt is available in three distinct variants—each designed to match specific industrial needs.
Technical Specifications & Material Options
- Pitch: 25,4 mm.
- Belt width: Up to 6.000,0 mm.
- Belt opening: 12,7 x 25,4 mm or 25,4 x 25,4 mm.
- Edges: Welded or clinched.
- Variants: Standard-Duty (SD), Heavy-Duty (HD), Can-Duty (CD).
- Strength: Ideal for heavy transportation.
- Material: Carbon Steel, AISI 304, AISI 316.
- Applications: Food & non-food industrial applications.

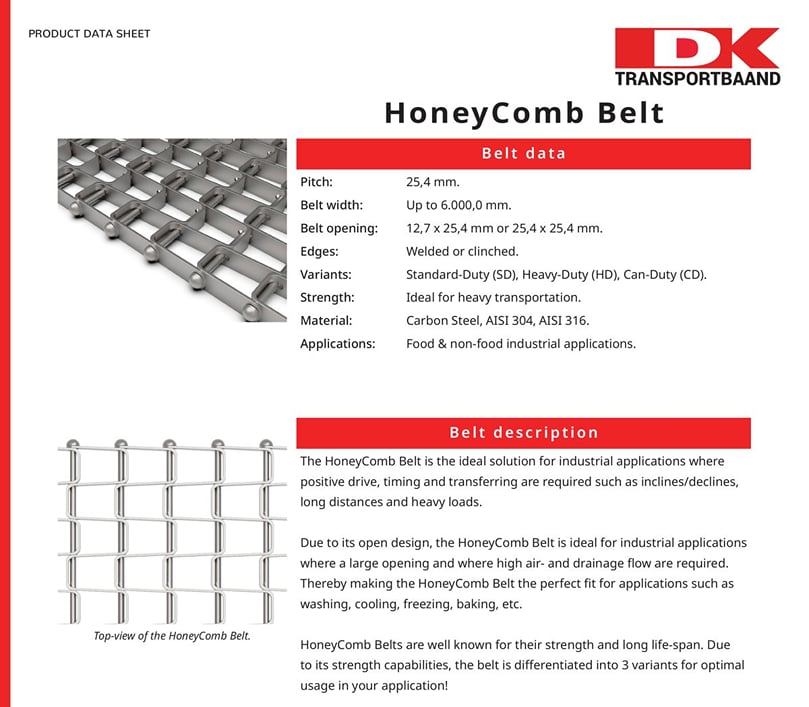

DK Transportbaand - HoneyComb Metal Conveyor Belt Data Sheet
(Click to download the full report | PDF)
