DK Transportbaand’s Plate Link Belts are mostly used in tunnel freezers and other industries where strength is essential. To ensure a strong and reliable belt, DK Transportbaand adds reinforcement links and side and/or centre chains to enhance belt strength and extend lifespan.
DK's Heavy-Duty Plate Link Belts are specifically designed for high-load applications where strength and reliability are critical. With thicker plates, links, and cross rods, the Heavy-Duty version is built to perform in the most demanding environments.
Technical Specifications & Material Options
- Pitch: 50,0 mm.
- Belt width: Up to 6.000,0 mm.
- Cross rod dia: Ø 7,0 mm or Ø 12,0 mm for Heavy-Duty.
- Plate thickness: 1,5 mm or 2,5 mm for Heavy-Duty.
- Strength: Ideal for medium-heavy transportation.
- Material: AISI 304, AISI 316.
- Applications: Food & non-food industrial applications.
- Options: Side and/or centre chain, Side plates, Flights.

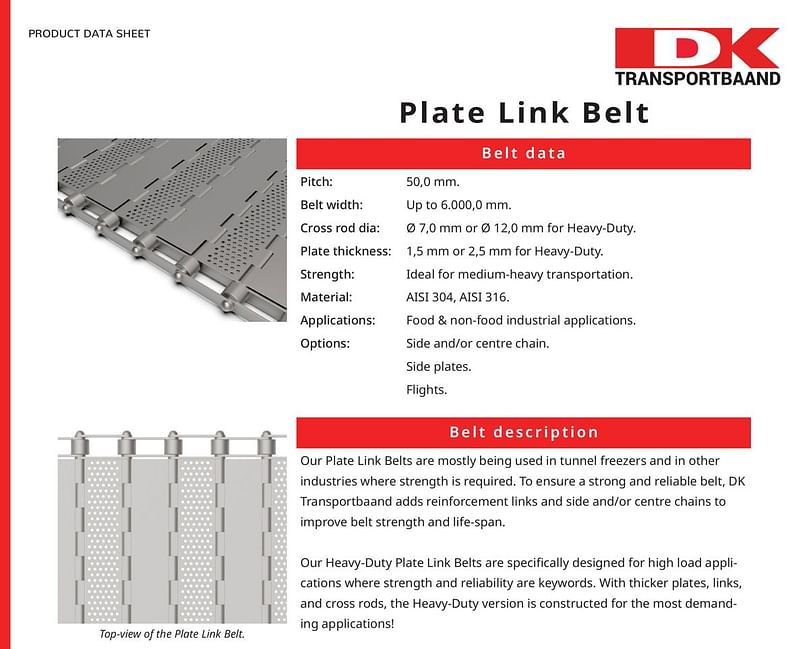

DK Transportbaand Plate Link Metal Conveyor Belt Data Sheet
(Click to download the full report | PDF)
