The Wire Mesh Belt is a positively driven, straight-running conveyor belt designed for optimal performance in applications requiring an open belt with minimal product contact. Its open design makes it highly suitable for processes such as glazing, washing, coating, and draining.
Thanks to its open structure, the Wire Mesh Belt is lightweight, easy to install, and simple to clean, significantly reducing maintenance time. These qualities have made the Wire Mesh Belt a preferred choice among many producers for a wide range of applications.
Dk Transportbaaand is proud to offer this reliable and efficient conveyor solution that combines durability with ease of use to meet diverse industrial needs.
Technical Specifications & Material Options
- Pitch: 3,9 mm up to 22,5 mm.
- Belt width: Up to 3.000,0 mm.
- Wire diameter: Ø 0,90 mm, Ø 1,00 mm, Ø 1,25 mm, Ø 1,40 mm, Ø 1,60 mm, Ø 1,80 mm, Ø 2,00 mm, Ø 2,35 mm, Ø 2,80 mm.
- Strength: Ideal for light transportation.
- Material: AISI 302.
- Applications: Food related industrial applications.

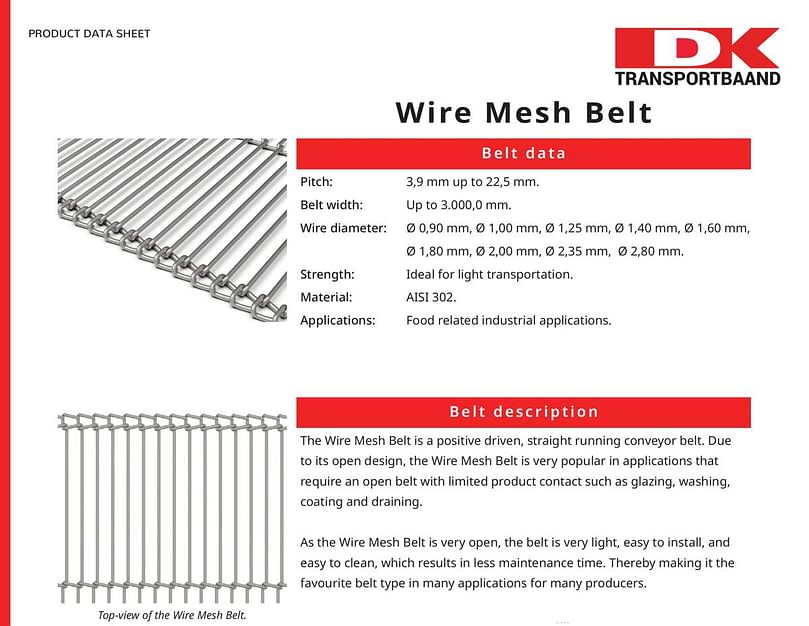

DK Transportbaand - Wire Mesh Metal Conveyor Belt Data Sheet
(Click to download the full report | PDF)
DK Transportbaand - Wire Mesh Metal Conveyor Belt Data Sheet
